Horizontal Spindle Surface Grinders with Reciprocating Table

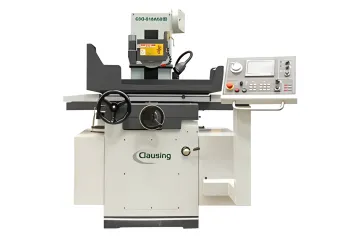

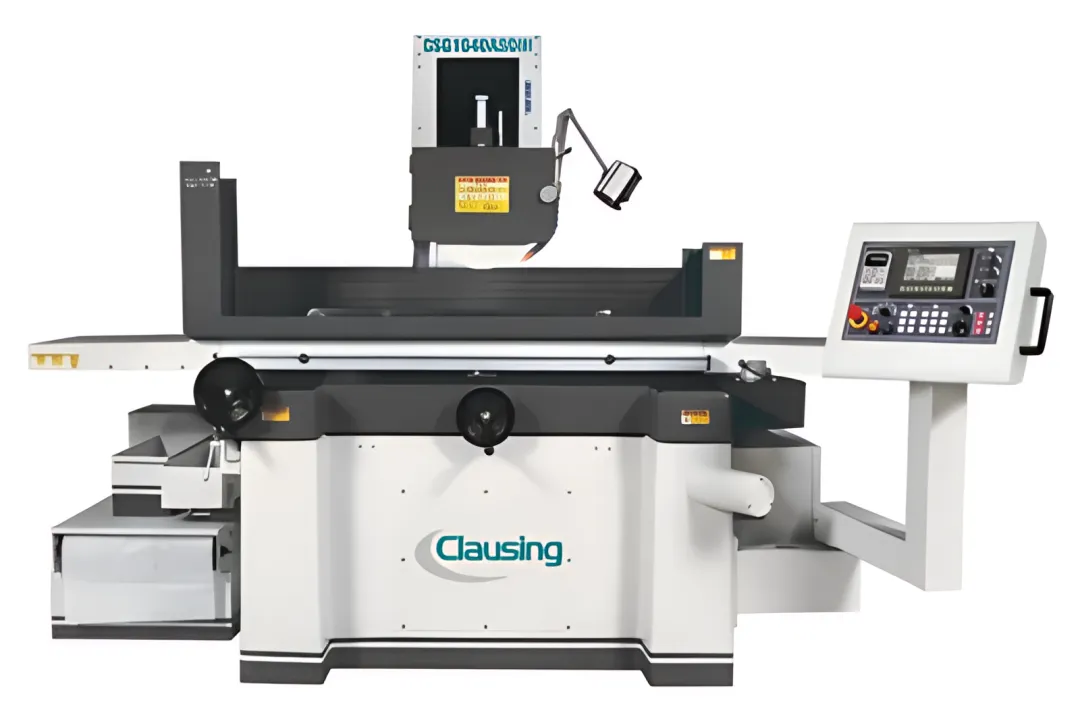

Manual models use hydraulic longitudinal movement and handwheel-operated crossfeed for operator-controlled grinding. Automatic (ASD) models add a Delta PLC conversational digital controller with a 7.2" color touch screen, enabling programmable up/down head positioning and automated crossfeed cycles for higher throughput and repeatability in production environments.

Clausing horizontal spindle surface grinders require three-phase power at 230 or 460 volts. Facilities operating on other voltages will require a transformer. Spindle motor horsepower ranges from 2 hp to 7.5 hp depending on the model, with hydraulic and servo motors for additional table and crossfeed functions.

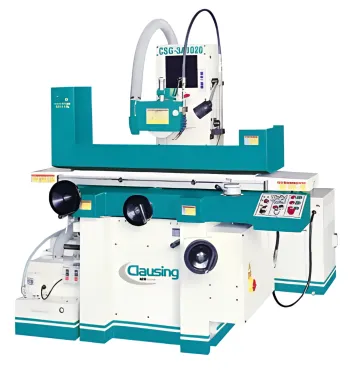

Compatible grinding wheel diameters range from 8" to 14" depending on the model, with bore sizes from 1.25" to 5" and wheel widths from 0.5" to 2". The CSG3A1224 specifically uses a 12" diameter wheel with a 3" bore and 1.25" width, operating at 1750 rpm spindle speed.

All Clausing CSG Series surface grinders feature precision hand-scraped V and Flat ways coated with Turcite B, a low-friction bearing material that significantly reduces wear over time. An automatic lubrication system is also included to continuously distribute oil across the ways, ensuring consistent accuracy and extended machine life.

Each Clausing surface grinder includes a 1-year limited manufacturer's warranty. T.R. Wigglesworth further supports customers through an independently operated Clausing Service Center stocking over 80,000 parts, with 95% of orders shipped within 24 hours. Highly qualified technicians are available for both phone and on-site technical support.

A coolant system is available as an optional accessory on models such as the CSG3A1224. Coolant systems help reduce heat buildup during grinding, improve surface finish quality, and extend grinding wheel life. Buyers should specify their coolant requirements at time of purchase to ensure the machine is configured appropriately.
