Introduction
Buying a used CNC lathe is one of the faster ways to expand machining capacity without the sticker shock of new equipment — purchase prices typically run 30% to 70% less than new, letting buyers skip the steepest depreciation and reach ROI faster. But that upfront savings can disappear quickly without the right evaluation. The wrong machine can cost more to repair than it saved at purchase.
The stakes extend beyond your budget: a used lathe purchase affects production uptime, part accuracy, and long-term maintenance overhead. A well-maintained machine with high spindle hours can outperform a neglected one with low hours; obsolete control systems alone can trigger five-figure retrofit costs.
65% of manufacturers prefer used machinery to reduce costs, but those who skip proper inspection routinely face unexpected downtime and repair bills that erase the savings.
This guide covers what buyers need to evaluate before committing: machine condition, inspection steps, total cost of ownership, and how to source from the right seller.
TL;DR
- Used CNC lathes cost 30–70% less than new, but hidden repair, retrofit, and downtime costs can erase those savings
- Before committing, evaluate machine condition, spindle hours, control compatibility, and spare parts availability
- Inspect the machine in person or via live demo—run test cuts, listen for spindle noise, check axis movement
- The sticker price is just the start — transport, installation, tooling, and first-year maintenance add up fast
- A reputable dealer should provide maintenance records, machine history, and post-sale support — not just a bill of sale
Key Factors to Evaluate Before Buying a Used CNC Lathe
Used CNC lathe selection isn't one-size-fits-all. The right machine depends on your production environment, tolerances, material types, and capacity for in-house maintenance. The following six factors connect technical specs to operational outcomes.
Machine Condition and Maintenance History
Maintenance history is one of the most reliable indicators of remaining machine life. A well-serviced machine with high hours can outperform a neglected machine with low hours. Request service logs before committing.
Specific wear indicators directly affect precision and reliability:
- Guideways: Check for scoring, uneven wear patterns, or rust that signals poor lubrication
- Ball screws: Excessive backlash indicates dimensional repeatability problems
- Turret indexing: Worn indexing gears cause positioning errors and failed tool changes
- Way covers: Missing or damaged covers allow chip contamination into critical slide surfaces
Fresh paint can be misleading. A freshly painted bed doesn't tell you whether the machine was crashed or if the spindle bearings are worn. Focus on mechanical condition, not appearance.

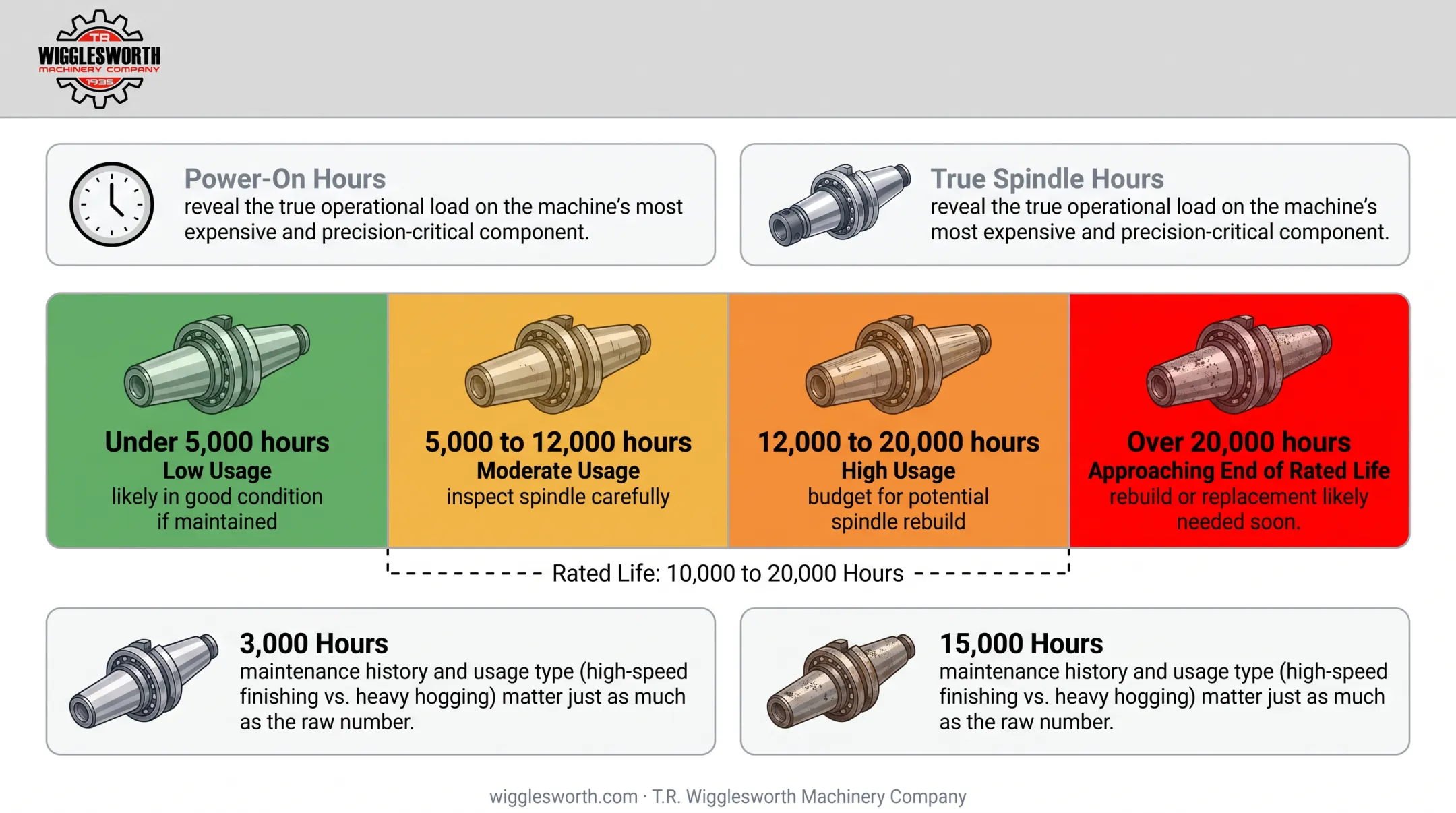

Spindle Hours and Usage Intensity
Spindle hours (not just power-on hours) reveal the true operational load on the machine's most expensive and precision-critical component. Most industrial spindles are rated for 10,000 to 20,000 hours, but high-intensity cutting degrades bearings and taper seating faster than light-duty use.

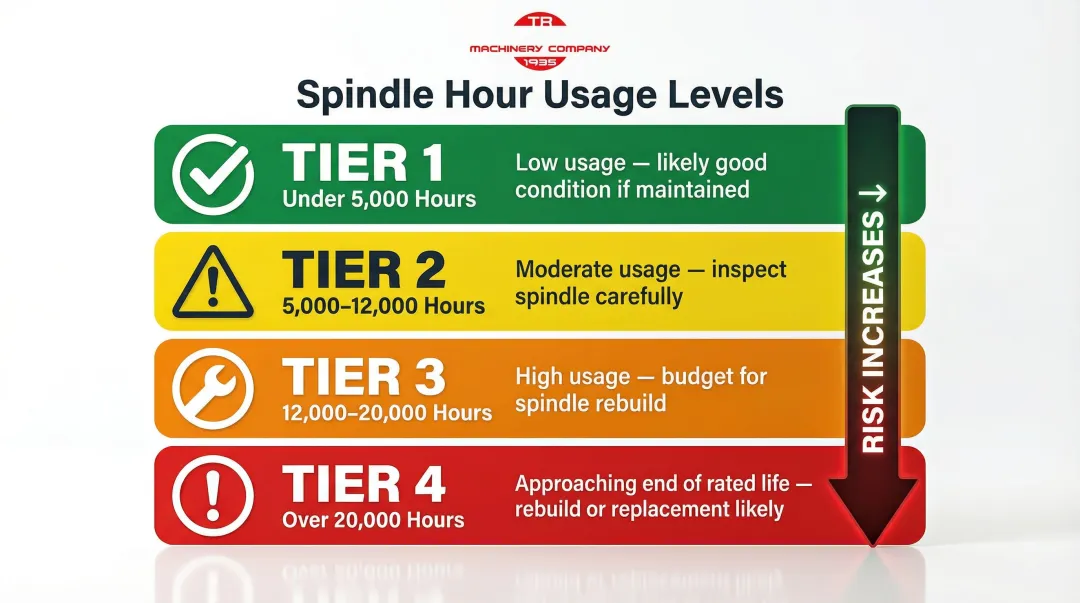

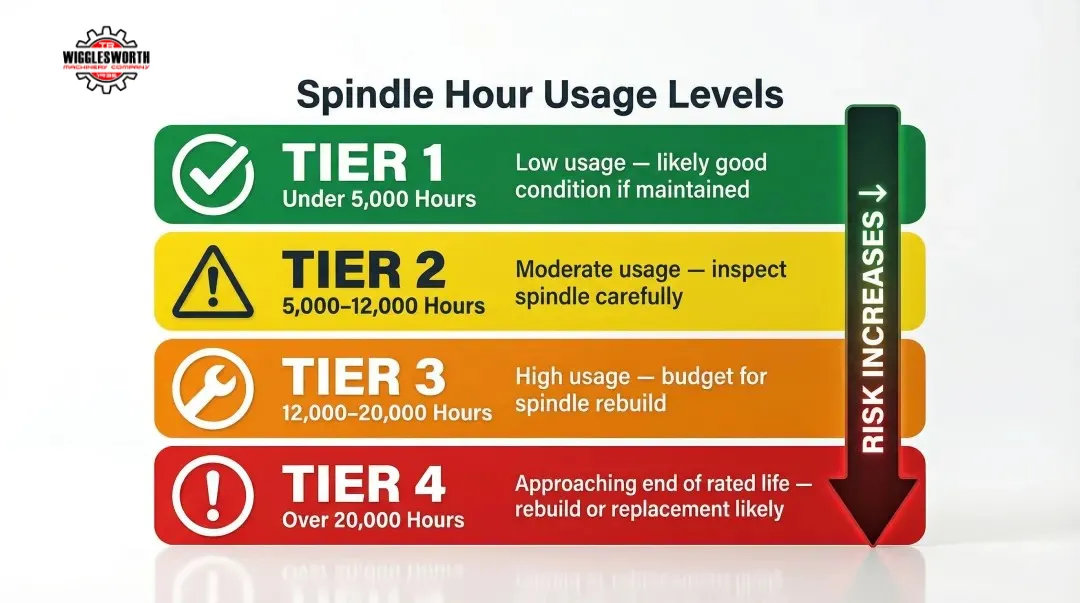

What constitutes "high" vs. "acceptable" spindle hours:
- Under 5,000 hours: Low usage; likely in good condition if maintained
- 5,000 to 12,000 hours: Moderate usage; inspect spindle carefully
- 12,000 to 20,000 hours: High usage; budget for potential spindle rebuild
- Over 20,000 hours: Approaching end of rated life; rebuild or replacement likely needed soon
A machine with 3,000 hours is considerably different from one with 15,000 hours, though maintenance history and usage type (high-speed finishing vs. heavy hogging) matter just as much as the raw number.
CNC Control System and Software Compatibility
Older or proprietary control systems create major compatibility issues with modern CAM software, DNC connectivity, and post-processors. Fanuc is the most common and dominant control system worldwide, offering deep OEM and integrator support. Other prevalent controls include Siemens, Heidenhain, Okuma OSP, and Mitsubishi.
The retrofit reality: Upgrading obsolete controls is expensive. A basic 2-axis machine tool control retrofit typically runs $75,000 to $100,000 — covering the new control, servo motors and drives, engineering, installation, startup, and training.
Verify before purchase:
- Confirm the control brand and exact model number
- Check software update availability from the manufacturer
- Test CAD/CAM compatibility with your existing workflow
- Research whether the control has reached End-of-Life (EOL) status — parts and support may be discontinued
Lathe Specifications vs. Production Requirements
Match the machine's physical specs to your actual part mix. Undersized or oversized machines create production bottlenecks.
Critical specifications to evaluate:
- Swing over bed: Maximum diameter the lathe can turn
- Maximum turning diameter: Practical working diameter (smaller than swing)
- Bar capacity: Diameter of stock that can pass through the spindle
- Chuck size: Determines workholding capability
- Number of turret stations: Affects tool capacity and cycle time
Different lathe configurations serve different applications. Flat bed lathes offer versatility for general work, while slant-bed configurations with tight repeatability specs are often demanded by aerospace and medical work. Live-tooling and sub-spindle options enable complex parts in a single setup, reducing handling and improving accuracy.
Spare Parts and Manufacturer Support
Discontinued models or orphaned brands may leave you unable to source replacement spindles, drives, or control boards — leading to extended downtime or having to buy a second machine as a parts donor.
Verify parts availability before purchase:
- Check the OEM's current parts catalog online or call an authorized dealer
- Contact the manufacturer to confirm whether the model is still supported
- Research aftermarket suppliers for common wear items
- Ask the seller for documentation of recent parts purchases
Brands like Okuma and Mazak guarantee lifetime parts support for every machine they've manufactured. Orphaned brands like Hitachi Seiki (which went bankrupt) make sourcing parts effectively unavailable. When buying legacy parts from third parties, watch for counterfeits — warning signs include pricing 40-60% below market and warranties of only 7-30 days.
Seller Reputation and Purchase Terms
The source of the machine affects buyer risk significantly. Private sellers typically offer no warranty and limited history. Reputable dealers inspect machines, maintain records, and may offer short-term guarantees or support agreements.
What trusted dealers provide:
- Documented maintenance and service history
- Pre-sale inspection and test cuts
- Access to multiple machines for comparison
- Fit-for-purpose guidance from someone who knows the equipment
- Post-sale support including installation and training
Before committing, ask any dealer for references from customers running similar part profiles — a dealer with 85+ years in the machine tool industry should have them readily available.
How to Inspect a Used CNC Lathe Before Buying
No amount of online research replaces a hands-on inspection or live demonstration. This section provides a structured walkthrough of what to assess in person.
Visual and Structural Inspection
Start with a thorough physical walkthrough:
- Guideways and bed: Look for rust, corrosion, or uneven wear patterns
- Headstock and turret: Check for oil leaks around seals
- Tailstock area: Inspect for cracks or damage from crashes
- Overall cleanliness: A well-maintained machine is clean; excessive grime signals neglect
Surface rust on guideways is a red flag—it indicates poor lubrication practices that likely extend to other systems. Way covers should be intact; missing covers allow chips into precision surfaces.
Spindle and Bearing Assessment
Spindle condition determines whether a used lathe can hold tolerance at all. Check for wear before anything else:
- Listen at various RPMs: Grinding, rattling, or irregular noise signals bearing degradation
- Measure runout with a dial indicator: Total indicated runout (TIR) at the spindle taper should not exceed 0.0002"
- Inspect the spindle taper: Look for fretting, scoring, or discoloration that indicates bearing problems
Runout greater than 0.0003" is a red flag. Spindle rebuilds cost $5,000 to $25,000+—factor this into your offer if spindle condition is questionable.

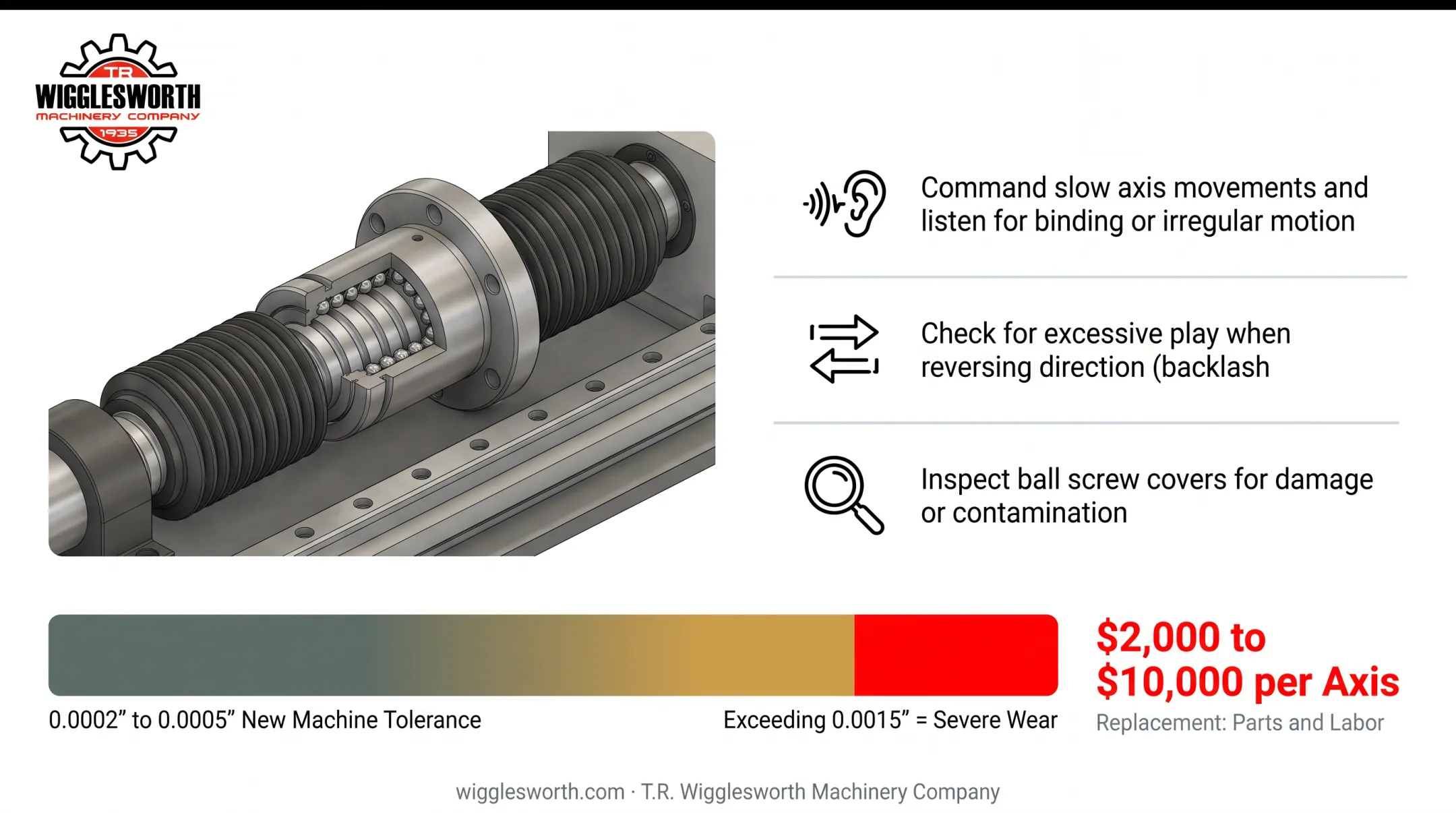

Axis Movement and Ball Screw Check
Test X and Z axis movement for smooth, backlash-free travel:
- Command slow axis movements and listen for binding or irregular motion
- Check for excessive play when reversing direction (backlash)
- Inspect ball screw covers for damage or contamination

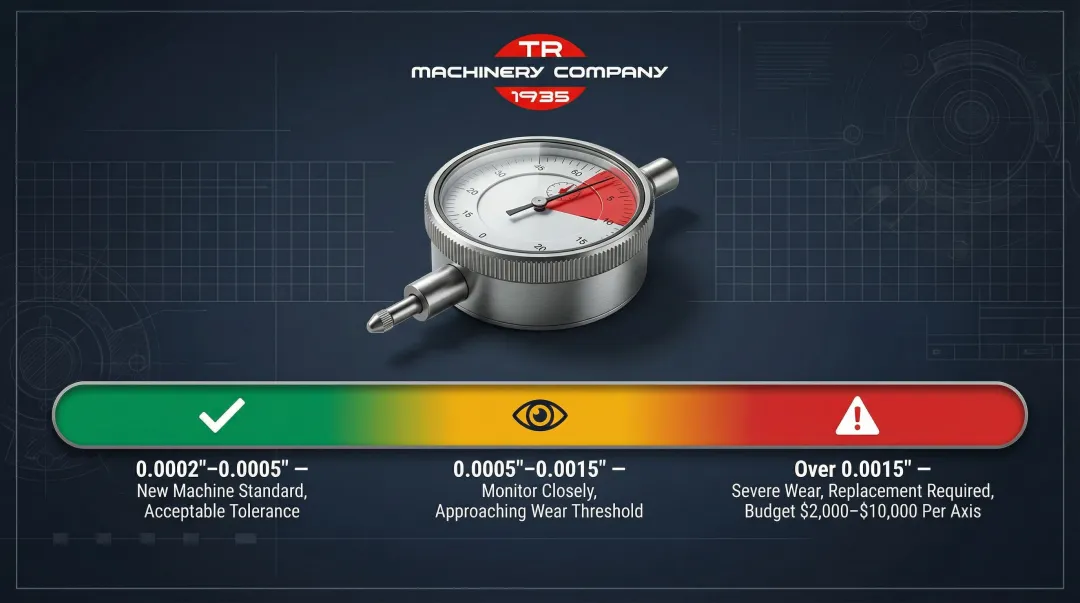

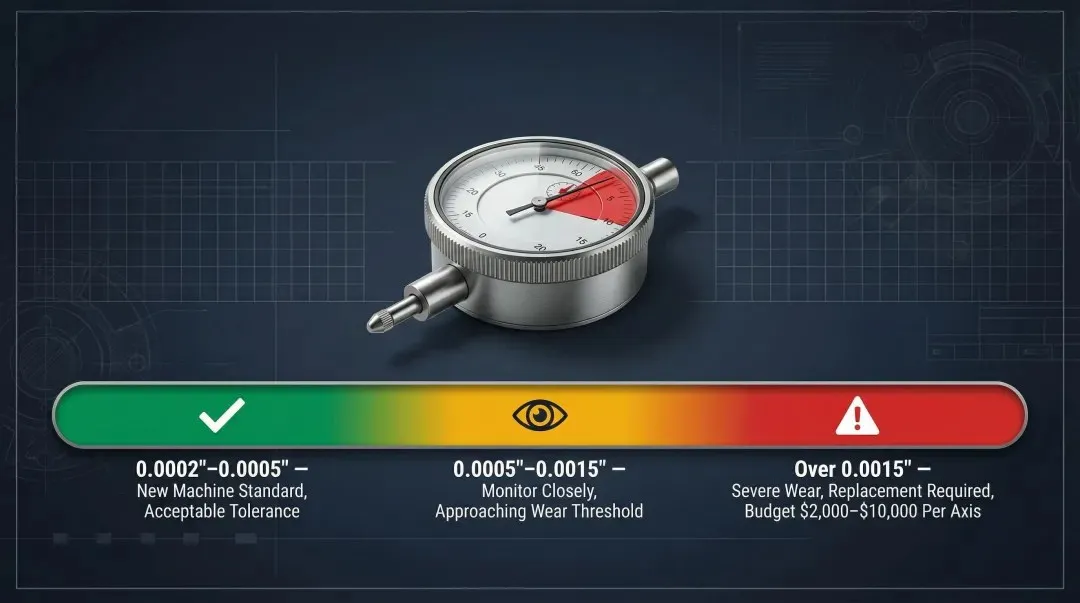

New machines typically have 0.0002" to 0.0005" backlash. Backlash exceeding 0.0015" indicates severe wear requiring replacement—budget $2,000 to $10,000 per axis including parts and labor.
Electrical Systems and CNC Control Panel
Verify the electrical and control systems are functional:
- Check for frayed wiring or burned connectors in the control cabinet
- Confirm the control powers up cleanly without fault alarms
- Test all functions: axis drives, coolant system, chip conveyor, turret rotation, and spindle speed changes
If the machine displays persistent fault codes or won't complete a power-up cycle, walk away. Control board failures are expensive and time-consuming to diagnose and repair.
Performance Test Cuts
Once electrical systems check out, run a test part before committing to purchase. A live cut is the most reliable way to confirm the machine performs to spec:
- Run a simple turning operation at typical speeds and feeds
- Measure the finished part with a caliper or micrometer
- Check for dimensional accuracy, surface finish, and repeatability
- Listen for chatter, vibration, or inconsistent tool engagement
Chatter, excessive vibration, or an inability to hold tolerance are disqualifying. These symptoms point to worn spindle bearings, degraded ball screws, or both—repairs that can run $15,000 or more depending on the machine size.
Understanding the Total Cost of Ownership
Most buyers underestimate total acquisition cost by focusing only on the purchase price. Budget realistically for the complete investment.
Realistic Price Ranges for Used CNC Lathes
Used CNC lathe prices vary based on size, brand, features, and condition:
| Size Class | Chuck Size | Typical Price Range |
|---|---|---|
| Small / Entry-Level | 8" | $40,000 - $60,000 |
| Mid-Range | 10" | $60,000 - $80,000 |
| Mid-Range with Live Tooling | 10" | $90,000 - $120,000 |
| Heavy-Duty / Large-Bore | 24"+ | $75,000 - $150,000+ |
These figures reflect asking prices for 2019-2022 models in good condition. Machines needing repairs or running older controls sell at a discount — but the sticker price is only part of what you'll actually spend.

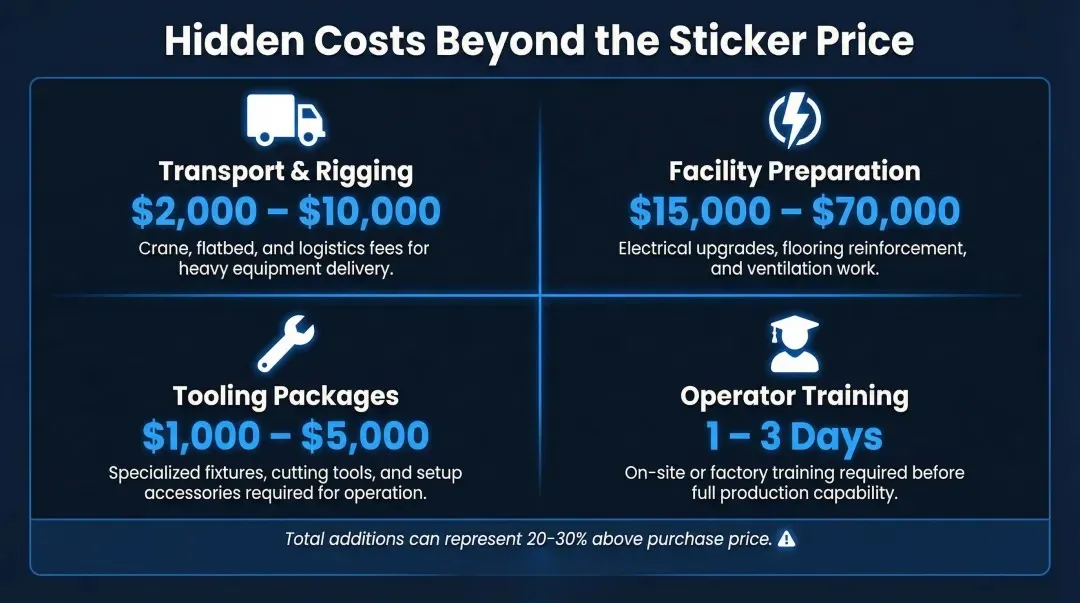

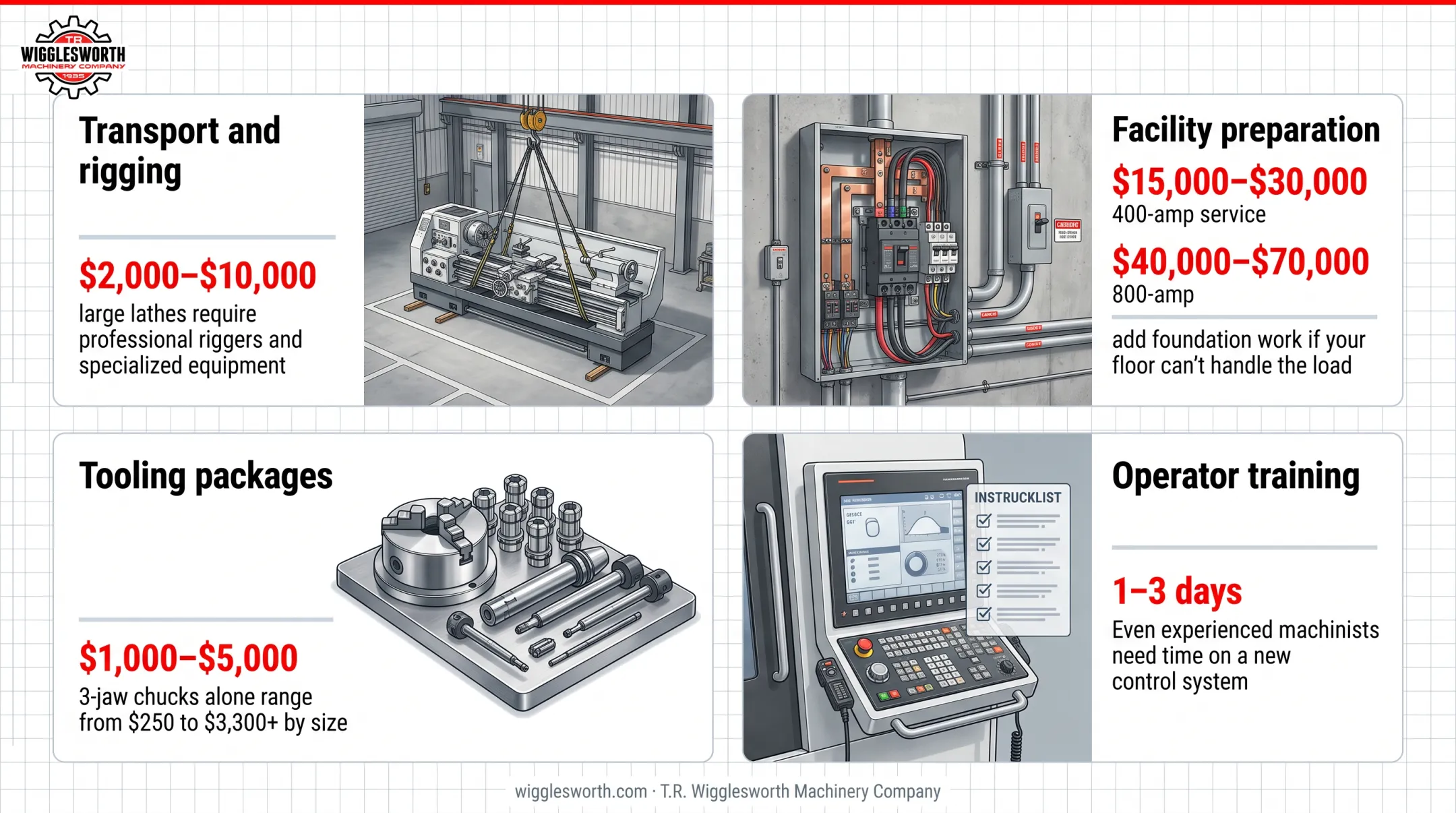

Hidden Costs Beyond the Sticker Price
Four cost categories catch buyers off guard:
- Transport and rigging: Typically $2,000–$10,000 depending on machine weight and distance; large lathes require professional riggers and specialized equipment.
- Facility preparation: Upgrading to 480V three-phase power is often required. Industrial electrical upgrades run $15,000–$30,000 for 400-amp service and $40,000–$70,000 for 800-amp; add foundation work if your floor can't handle the load.
- Tooling packages: Workholding and cutting tools add $1,000–$5,000 for a comprehensive setup (collet chucks, tool holders, boring bars); 3-jaw chucks alone range from $250 to $3,300+ by size.
- Operator training: Even experienced machinists need time on a new control system — budget 1–3 days of formal instruction or downtime to avoid costly startup errors.
Ongoing Maintenance Budget
Industry standards recommend budgeting 2% to 5% of the machine's Replacement Asset Value (RAV) annually for maintenance. Spending below 2% often signals deferred maintenance that will surface as unexpected breakdowns.
For a used lathe with a $100,000 replacement value, budget $2,000 to $5,000 annually for scheduled lubrication, coolant system servicing, and wear item replacement. Older machines typically require maintenance at the higher end of this range.
How T.R. Wigglesworth Machinery Co. Can Help

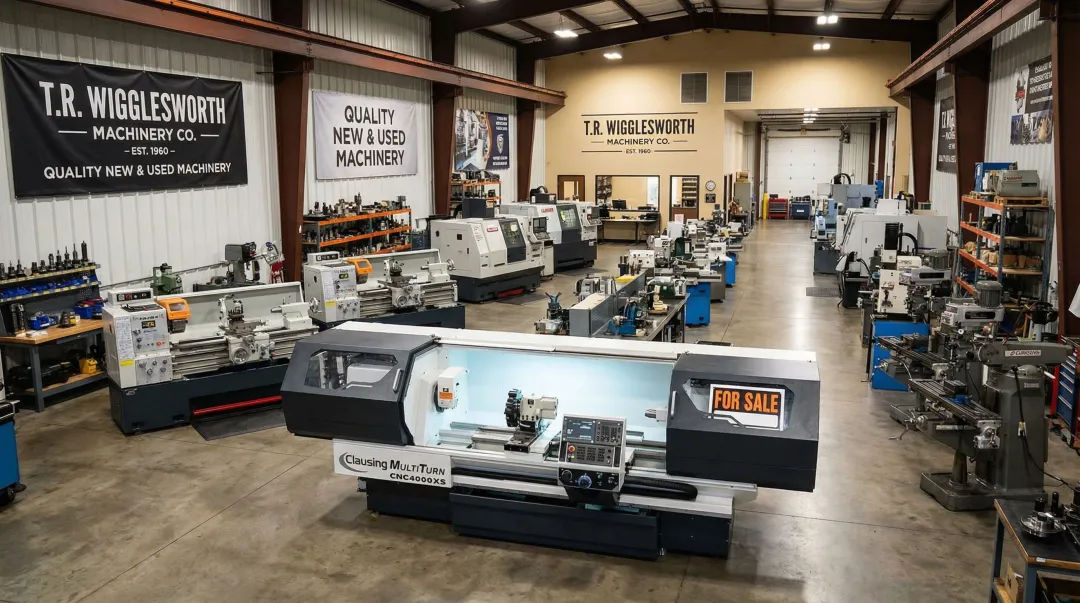

T.R. Wigglesworth Machinery Co. is a full-service machine tool provider with over 85 years in the industry, offering buyers the expertise to evaluate, source, and support used and new CNC lathe investments. That depth of experience translates directly into fewer surprises after a machine arrives on your floor.
As an authorized dealer for established brands including FEMCO, KENT, and DAH LIH, T.R. Wigglesworth provides access to both new and used equipment options. The company also carries OEM replacement parts and holds specialized expertise in Webster & Bennett vertical turret lathes — a distinction that matters when sourcing components for older or legacy machines. Buyers across aerospace, defense, medical, and precision manufacturing rely on this inventory depth to find equipment matched to specific production requirements.
Support doesn't stop at the sale. Post-purchase services include:
- Delivery and installation coordination
- Operator training to close the productivity gap after changeover
- Access to OEM parts inventory for ongoing maintenance needs
With relationships built over nine decades, T.R. Wigglesworth brings the industry connections and hands-on knowledge to help buyers make confident, well-informed decisions.
Conclusion
Buying a used CNC lathe can be a smart, cost-effective decision when approached systematically. The risks are manageable when you evaluate condition thoroughly, budget honestly for total cost, and source from reputable sellers.
The goal isn't to find the cheapest machine — it's to find the right machine for your shop's production requirements. A well-chosen used lathe delivers decades of productive service. Before you commit, make sure you've covered the essentials:
- Inspect spindle condition, ways, and critical wear surfaces in person
- Account for total cost: transport, installation, tooling, and likely repairs
- Verify control system parts availability before purchasing older CNC models
- Buy from dealers who can provide service history and post-sale support
T.R. Wigglesworth Machinery Co. has stocked and serviced used CNC lathes since 1935 — if you're not sure where to start, their team can help match equipment to your production requirements.
Frequently Asked Questions
How much is a CNC machine worth?
Used CNC lathe prices range from $40,000 for small entry-level machines to $150,000+ for heavy-duty large-bore models. Value depends on age, spindle hours, condition, control system, and brand. Well-maintained machines from premium manufacturers command higher prices.
What to look for when buying a used CNC machine?
Focus your evaluation on:
- Machine condition and complete service history
- Spindle health — check runout and listen for bearing noise
- Control system compatibility with your CAM software
- Spare parts availability from the manufacturer
- Seller reputation and transparency
Always inspect in person and run test cuts before committing.
What is the typical lifespan of a CNC lathe?
A well-maintained CNC lathe typically lasts 10 to 15 years, but with proper care can operate productively for over 30 years. Lifespan depends heavily on maintenance quality and usage intensity—machines from reputable brands with documented service histories often run decades.
Is buying a used CNC machine worth it?
Yes, for buyers with in-house maintenance capability and clear production requirements. Used CNC lathes offer 30-70% cost savings and faster ROI compared to new equipment. However, they carry higher risk without proper inspection, documented maintenance history, and a reliable seller.
What are the hidden costs of buying a used CNC lathe?
Beyond the purchase price, budget for transport and rigging ($2,000-$10,000), facility electrical upgrades ($15,000-$70,000), tooling packages ($1,000-$5,000), operator training, and first-year maintenance reserves (2-5% of replacement value). These costs often add 20-30% to the total investment.
What documentation should I request when buying a used CNC lathe?
Request maintenance and service logs, spindle hour records, accuracy certifications or calibration records, crash history, and control system update history. These records help predict remaining service life and flag potential repair needs before you commit.
