Precision Surface Grinder for Tool and Die Shops

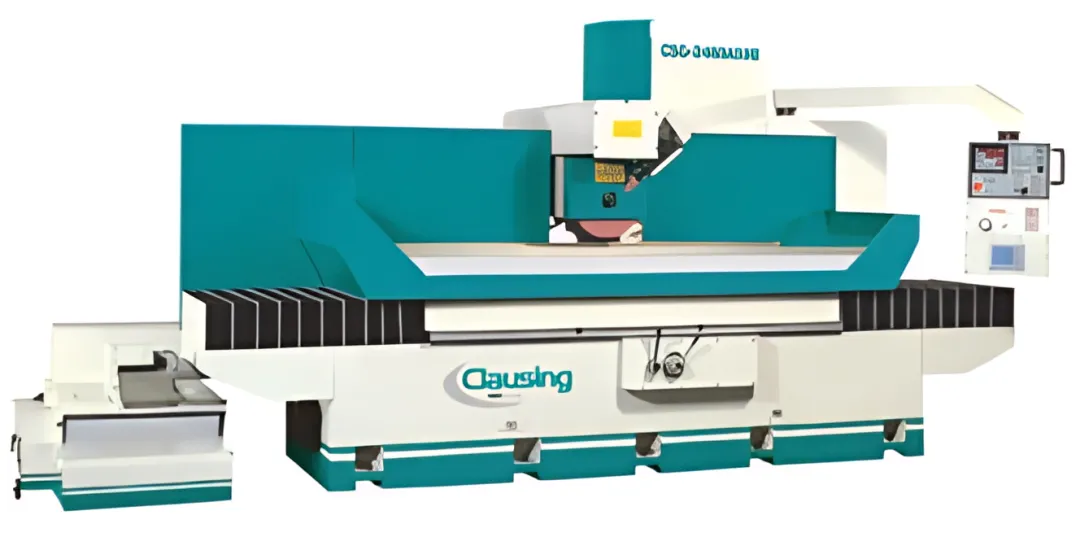

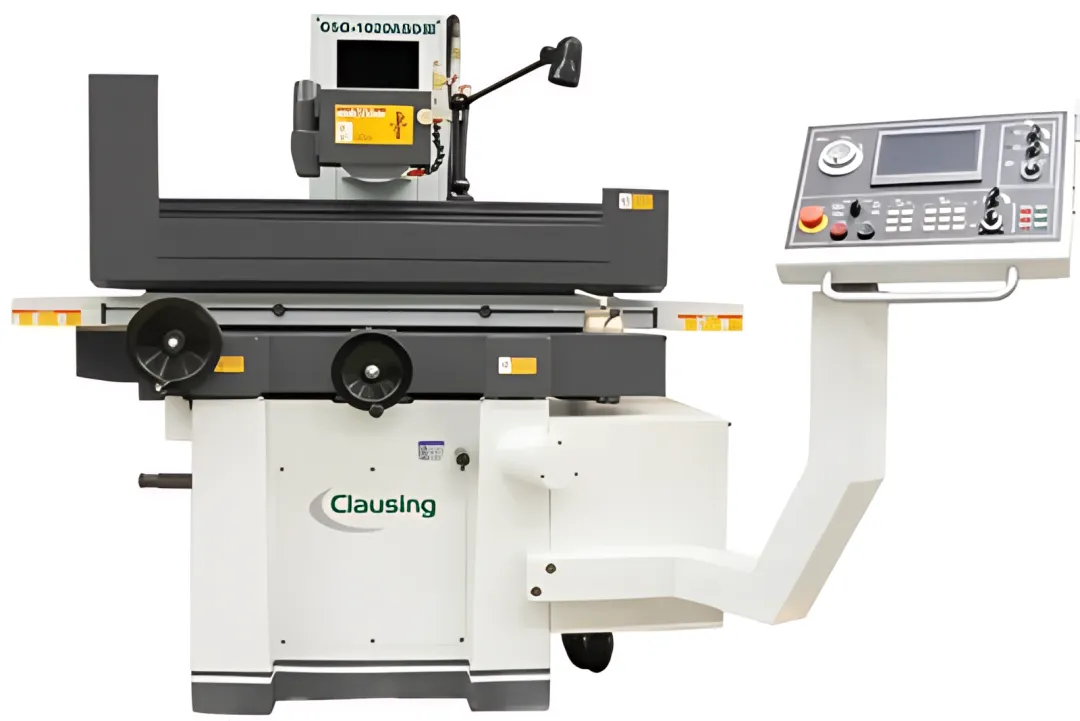

Manual hydraulic models like the CSG3A1224 rely on operator control for crossfeed and infeed adjustments, offering straightforward operation with hydraulic longitudinal table movement. Automatic models in the CSG ASD series feature a Delta PLC conversational digital controller with a 7.2" color touch screen, enabling programmable head positioning and automated cycle operation for higher production efficiency.

Clausing CSG Series surface grinders require three-phase power at 230 or 460 volts. If your facility operates on a different voltage, a transformer will be necessary. It is recommended to confirm your facility's electrical supply specifications before ordering to ensure proper installation without additional equipment.

Clausing surface grinders feature precision hand-scraped V and Flat ways coated with Turcite B material. Turcite B is a self-lubricating bearing material that provides exceptional wear resistance, smooth table movement, and reduced stick-slip — all critical factors for maintaining long-term grinding accuracy in demanding tool and die shop environments.

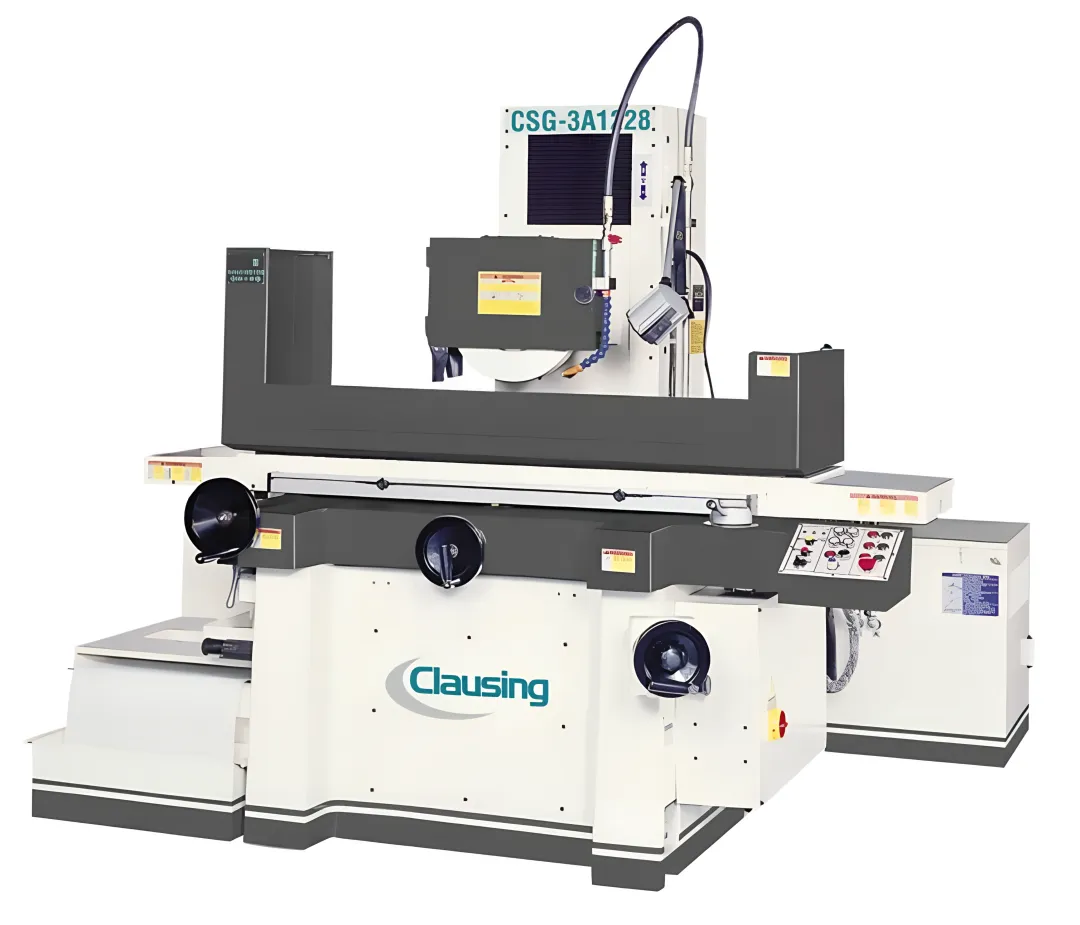

The CSG Series accommodates grinding wheel diameters from 8" to 14", widths from 0.5" to 2", and bore sizes from 1.25" to 5" depending on the specific model. The CSG3A1224 uses a standard 12" diameter wheel with a 1.25" width and 3" bore. Always verify wheel compatibility with the specific model before purchasing replacement wheels.

A coolant system is available as an option on models such as the CSG3A1224. Coolant is highly recommended for precision surface grinding to control heat, extend wheel life, and improve surface finish quality. Contact T.R. Wigglesworth Machinery to confirm coolant system availability and configuration for your selected model.

All Clausing surface grinders come with a 1-year limited manufacturer's warranty. After-sale support is provided through an independently operated Clausing Service Center with over 80,000 stocked parts. Highly qualified technicians are available for both phone-based and on-site support, and 95% of all parts orders are shipped within 24 hours.
