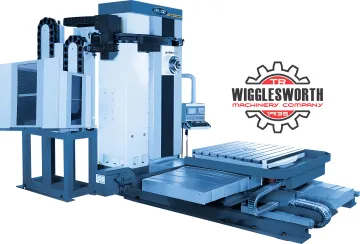

CNC Horizontal Boring Mill CT-50 Taper Geared Head

The FEMCO BMC series offers 35 HP to 50 HP spindle motors. Speed ranges from 2,500 RPM on models like the BMC-110R1 and BMC-110R2, up to 8,000 RPM on the high-speed BMC-100HT. The BMC-135TN and BMC-135TNL operate at 3,000 RPM with 50 HP for heavy-duty cutting performance.

Table load capacities across the FEMCO BMC series range from 13,889 lbs up to 40,000 lbs. Models such as the BMC-100HT and BMC-110R3 support up to 40,000 lbs, while the BMC-135TN and BMC-135TNL feature full B-Axis rotary tables rated at 33,000 lbs, suitable for very large and heavy industrial workpieces.

All FEMCO BMC series machines use FANUC CNC controls. Options include the FANUC OiMF control panel (10.4 inch display), FANUC 31i-B, and the advanced FANUC Artificial Intelligence Contour Control (AICC) available on the BMC-100HT. These systems provide high precision, reliable automation, and seamless integration into production environments.

X-axis travel varies by model: the BMC-110R1 offers up to 55.12 inches, the BMC-110R2 up to 78.74 inches, the BMC-100HT and BMC-110R3 up to 118 inches, and the BMC-135TNL reaches 157.4 inches. This range accommodates workpieces from mid-size components to very long weldments and structural parts.

Yes. Every FEMCO BMC series horizontal boring mill purchased through T.R. Wigglesworth Machinery Company includes delivery, professional installation, and operator training. This ensures the machine is correctly commissioned and your team is fully prepared for production. Contact T.R. Wigglesworth for specific shipping timelines and warranty details.

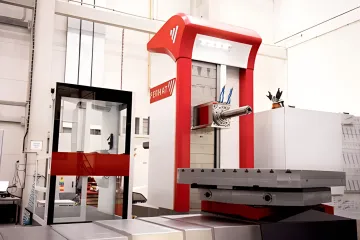

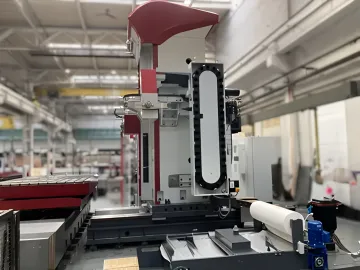

These machines are used in heavy manufacturing, aerospace and defense, precision manufacturing, and general machining operations. Typical applications include machining large welded frames, complex weldments, coordinate drilling, threading, deep boring, and interrupted heavy cuts — particularly on workpieces up to 20 tons requiring long-term dimensional accuracy.
