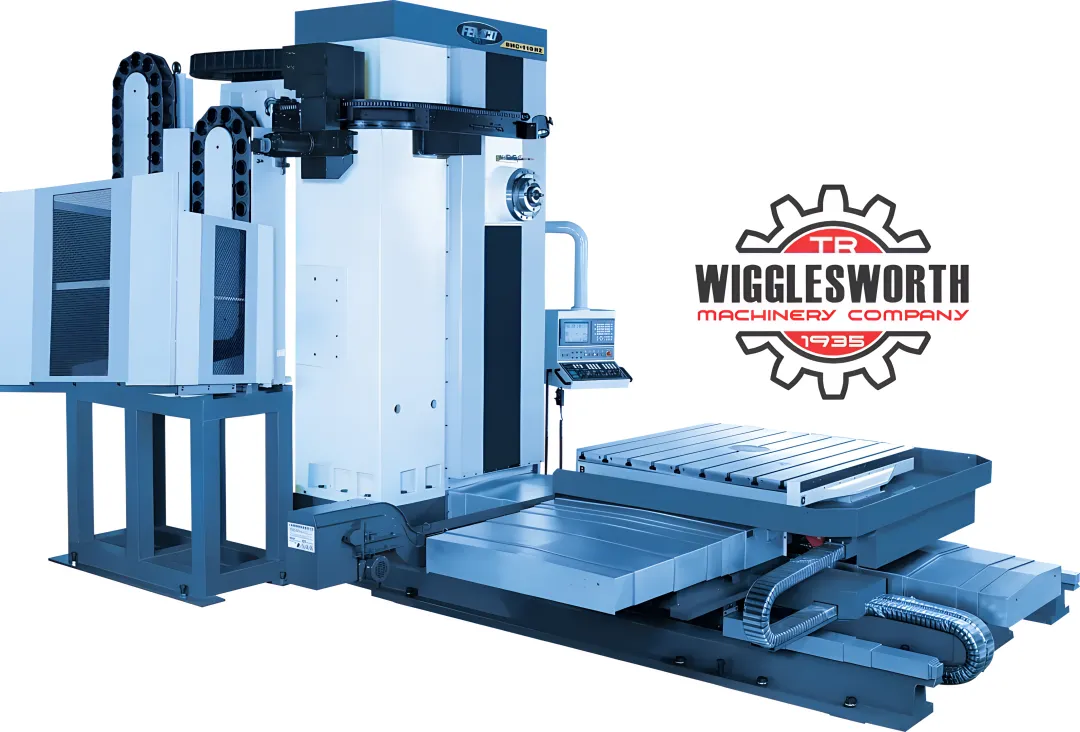

Fanuc CNC Horizontal Boring Mill for Sale

The FEMCO BMC series offers table load capacities ranging from 13,889 lbs up to 40,000 lbs depending on the model. Models such as the BMC-100HT and BMC-110T3 support up to 40,000 lbs, making them ideal for machining the heaviest industrial workpieces including large weldments and structural components up to 20 tons.

The FEMCO BMC series offers spindle power from 35 HP to 50 HP and speeds ranging from 2,500 RPM up to 8,000 RPM. The BMC-100HT offers the highest speed at 8,000 RPM for high-speed precision applications, while the BMC-135TN and BMC-135TNL deliver 50 HP for heavy-duty cutting with a 3,000 RPM geared head spindle.

X-axis horizontal table travel across the BMC series ranges from 55.12 inches on the BMC-110R1 up to 157.4 inches on the BMC-135TNL. This wide range accommodates everything from compact production runs to the machining of very large frames, weldments, and structural components requiring extended workpiece travel.

Most models in the FEMCO BMC series include a 60-tool Automatic Tool Changer (ATC), including the BMC-110R2, BMC-110R3, BMC-135TN, and BMC-135TNL. The ATC enables continuous machining operations with minimal downtime for tool changes, supporting high-efficiency production environments with complex multi-operation workpieces.

FEMCO BMC series horizontal boring mills are engineered for precision milling, coordinate drilling, boring, threading, and heavy interrupted cuts. They excel at machining complex welded frames, large structural weldments, and precision cylindrical components. Their rigidity and long-term accuracy make them suitable for both serial production and one-off heavy-duty machining applications.

Yes. Every FEMCO BMC series horizontal boring mill purchased through T.R. Wigglesworth Machinery Company includes delivery, professional installation, and operator training services. This full-service approach ensures the machine is correctly commissioned and your team is prepared to operate it safely and efficiently from the first day of production.
