12 x 24 Surface Grinders

Hydraulic surface grinders use a hydraulic system for longitudinal table movement, offering smooth, variable-speed travel suited to manual operation. Automatic models add programmable CNC or PLC control — such as Clausing's Delta PLC with a 7.2" color touch screen — enabling automatic crossfeed increments, head positioning, and repeatable cycle execution for higher production efficiency.

Most 12 x 24 surface grinders are equipped with spindle motors in the 5 hp range. The Clausing CSG3A1224 uses a 5 hp direct-coupled spindle motor running at 1,750 rpm, which is well-suited for heavy-duty grinding of steel, cast iron, and tooling materials in production and job shop environments.

The Clausing CSG3A1224 uses a 12" diameter grinding wheel with a 1.25" width and a 3" bore. Wheel dimensions vary across the Clausing CSG series, with diameters ranging from 8" to 14" and widths from 0.5" to 2" depending on the specific model configuration.

12 x 24 surface grinders like the Clausing CSG3A1224 require three-phase power at either 230 or 460 volts. Single-phase power is not compatible; facilities operating on a different voltage will need a step-up or step-down transformer to meet the machine's electrical requirements.

Hydraulic surface grinders deliver high precision for flat surface finishing. The Clausing CSG3A1224 features a vertical handwheel graduation of 0.0005" and crossfeed graduation of 0.001", along with hand-scraped, Turcite B-coated ways and preloaded angular contact bearings to maintain consistent accuracy under heavy grinding loads.

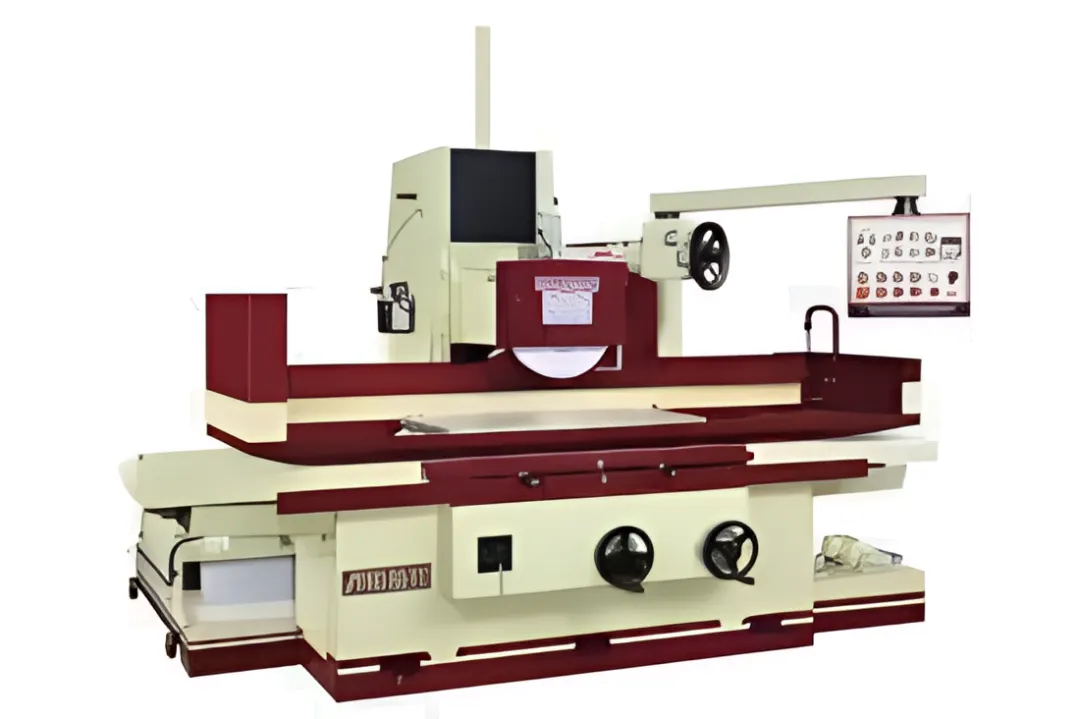

12 x 24 surface grinders are widely used in aerospace and defense, medical device manufacturing, mold machining, and general precision manufacturing. They are common in job shops, production facilities, and tooling departments that require flat, parallel, and square surfaces on metal components and fixtures.
