Introduction
Surface grinder spindle bearing replacement is a precision rebuild procedure with consequences measured in microns. Spindles operate at 3,400–7,450 RPM with radial runout tolerances of ≤0.005mm — minor installation errors translate directly to scrapped parts, chatter, and premature bearing failure.
This is not a job for general-purpose mechanics. Successful replacement requires an experienced maintenance technician or machine tool specialist with access to precision measuring instruments (dial indicators, micrometers, bore gauges) and a hydraulic or arbor press. Many shops send spindles to a rebuild specialist rather than attempt in-house work — the contamination sensitivity and preload precision involved make outsourcing a legitimate call.
If your shop is equipped and committed to doing this in-house, the following guide walks through the full process: failure diagnosis, bearing selection, installation, preload setting, break-in, and post-rebuild validation.
TLDR
- Successful spindle bearing replacement requires angular contact bearings, correct orientation, a clean workspace, and calibrated tooling
- Failure symptoms include excessive vibration, abnormal noise, elevated spindle housing temperature, and loss of dimensional accuracy in finished parts
- Follow this sequence: disassembly → inspection → bearing prep → installation with correct preload → reassembly → break-in testing
- Skipping preload adjustment or directionality checks are the two leading causes of premature failure after a rebuild
- Use OEM-spec bearings from an authorized supplier to confirm dimensional and speed-rating compatibility
Before You Start: Prerequisites, Safety, and What You'll Need
Safety is non-negotiable. Before beginning any disassembly:
- Apply full machine lockout/tagout (LOTO) to isolate electrical, hydraulic, and pneumatic systems
- Drain all coolant from the spindle assembly
- Clear and clean the immediate work area
Critical workspace requirement: Replacement must not proceed if the workspace cannot be controlled for cleanliness. Even microscopic grinding debris in a bearing raceway causes premature failure. Treat this as a precision rebuild requiring shop-floor cleanliness standards.
Recognizing When Bearings Actually Need Replacing
Primary failure symptoms include:
- Unusual grinding, squealing, or rumbling noises during spindle rotation
- Elevated spindle housing temperature beyond normal operating range (typically 108–111°F / 42–44°C for grease-lubricated precision grinder spindles)
- Increased vibration amplitude measurable with a dial indicator
- Degraded part surface finish or loss of dimensional tolerance
Definitive indicators during inspection:
- Degraded or discolored grease
- Visible bearing pitting or scoring
- Runout measurements exceeding the machine's specified tolerance (many precision surface grinder spindles hold radial runout tolerances within 0.005mm or tighter)
Any one of these conditions warrants a full bearing replacement before the spindle returns to service.
Tools and Parts Required
Essential tools checklist:
- Hydraulic or arbor press (for bearing removal and installation)
- Bearing pullers
- Snap ring pliers
- Torque wrench
- Dial indicator with magnetic base
- Micrometer or bore gauge
- Lint-free gloves
- Non-abrasive solvent and lint-free cloths
- Plastic or brass drifts (never steel-on-bearing)
- Clean tray or mat for component staging
Bearing selection requirement:
Surface grinder spindles typically use angular contact ball bearings, which handle combined radial and axial loads. Key specifications:
- Contact angles (commonly 15°, 25°, or 40°) determine axial load capacity—higher contact angle means greater axial load handling
- Bearings are typically installed in matched pairs
- Replacement bearings must match the original specifications exactly: bore size, OD, precision grade, and speed rating

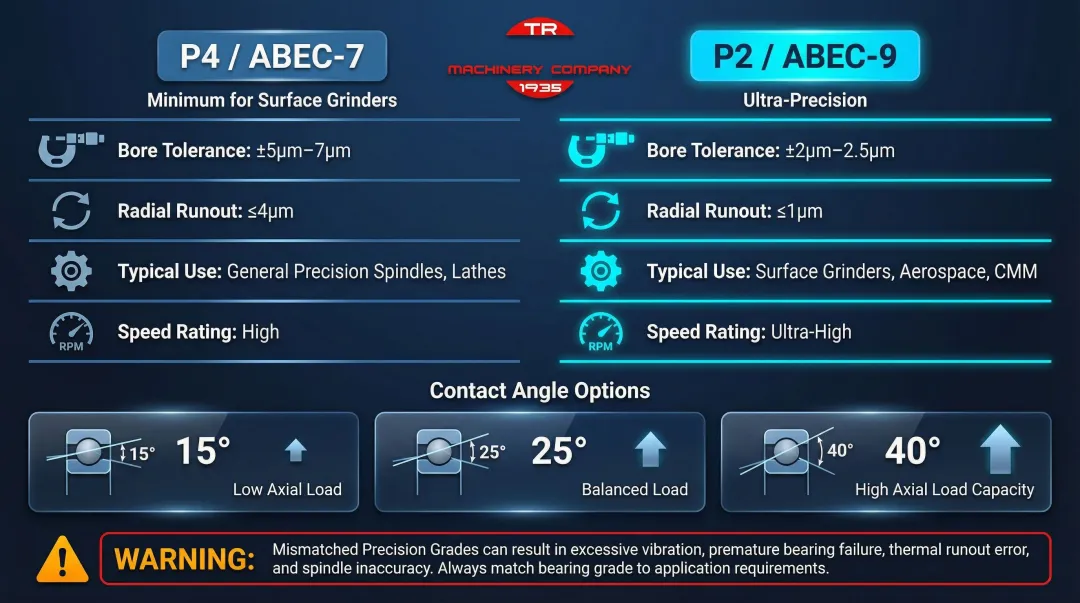

Precision grade is critical. According to bearing industry standards, surface grinder spindles require Class P4 (ISO) / ABEC-7 bearings as a minimum. Ultra-precision applications step up to P2/ABEC-9 grades. Substituting a lower-precision or mismatched grade will compromise spindle accuracy.
For shops running KENT, FEMCO, or DAH LIH surface grinders, sourcing OEM-spec replacement bearings through an authorized dealer like T.R. Wigglesworth Machinery Co. ensures correct specification and compatibility.
Pre-installation verification:
- Verify the spindle shaft and housing dimensions with a micrometer before ordering bearings
- Inspect spacers (inner and outer) for flatness—flatness and parallelism must meet tolerances typically within 0.002mm because spacer quality directly controls bearing preload
How to Replace Surface Grinder Spindle Bearings (Step-by-Step)
This procedure follows a strict sequence. Shortcuts—particularly on bearing orientation, preload, or cleanliness—cause premature failure or a repeat rebuild.
Disassembly
Spindle removal sequence:
- Confirm LOTO and coolant drainage
- Remove the grinding wheel, wheel guard, and drive coupling components
- Carefully disassemble the spindle housing following the machine's service manual sequence
- Use bearing pullers to extract old bearings—never use a hammer or apply force to rolling elements
- Keep all removed components (spacers, seals, locknuts, retaining rings) organized in sequence for reassembly reference
Cleaning and Component Inspection
Clean all components before inspection — contamination at this stage causes bearing failure down the line.
- Clean all spindle components with non-abrasive solvent
- Dry with lint-free cloths or filtered compressed air
- Avoid shop air, which often contains moisture or contaminants
Inspection checklist:
- Inspect the spindle shaft for scoring, fretting, or dimensional wear using a micrometer—a worn shaft journal will cause the new bearing to seat improperly
- Inspect the housing bore for ovality or wear
- Polish any burrs from mating surfaces with a fine stone only
- All mating surfaces must be free of imperfections before new bearings are installed
Preparing and Installing New Bearings
Directionality is critical. Angular contact bearings used in surface grinder spindles are directional—the orientation of the outer race shoulder determines the load direction.
The "thin side vs. thick side" rule:
- The thinner outer race side faces inward/toward the spindle center
- Installing a bearing reversed will cause immediate overloading and failure
Before packing: Keep bearings in their original packaging until the moment of installation to prevent contamination.
Grease packing process:
- Use manufacturer-recommended high-speed grease (typically high-temperature lithium-based grease for spindle applications)
- Apply via syringe to pack the bearing thoroughly
- Work grease into the bearing by rotating it manually
- Avoid over-packing (causes heat buildup) and under-packing (causes dry running)

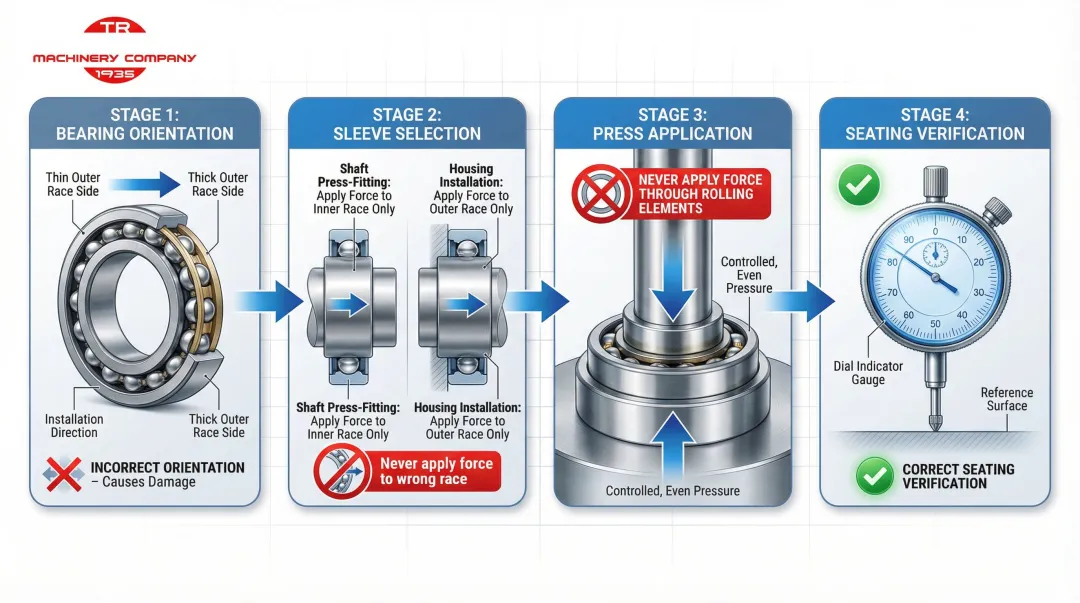

Press-fitting sequence:
- Use a hydraulic or arbor press with a proper bearing sleeve or drift that contacts only the correct race:
- Inner race for shaft mounting
- Outer race for housing mounting
- Apply slow, even pressure
- Never press through rolling elements
- Check that the bearing is fully and evenly seated after installation using a dial indicator to verify seating depth
Spacer and Preload Adjustment
What is bearing preload? Correct preload eliminates internal clearance, reduces runout, and ensures the spindle holds its axis under load. Too little preload causes chatter and vibration; too much causes overheating and accelerated wear.
Spacer adjustment method:
In paired angular contact bearing setups, inner and outer spacers control preload by setting the axial gap between bearing races.
Sensory method (in-shop adjustment):
- Use finger pressure to feel whether the resistance when moving the inner spacer equals that of the outer spacer
- Grind the spacer face until the resistance is equalized
- Verify spacer flatness with a micrometer before reinstalling
Measurement method (more precise):
- Calculate spacer thickness based on bearing specifications
- Requires manufacturer data but provides tighter control
Either way, spacer flatness must meet tolerances (typically 0.002mm or as specified by the machine OEM).
Reassembly
Reinstall in reverse disassembly order:
- Reinstall seals and locknut(s) with medium-strength thread locker on the seal nut. Thread locker acts as both a retainer and a coolant seal.
- Install end caps and include the shim under the nut seal if the design specifies it (shim prevents metal-to-metal contact between the nut and end cap)
- Apply only light, controlled torque to locknut(s)—the goal is to bring the nut to a snug contact, not to clamp with high force
- Spin the spindle by hand after each stage of reassembly to confirm smooth, resistance-free rotation
Post-Replacement Validation and Break-In Testing
Break-in testing is non-negotiable — new grease redistributes, bearing surfaces seat, and heat must reach equilibrium before you put the spindle under load. Skipping this step risks grease channeling, overheating, and early bearing failure.
Follow this sequence:

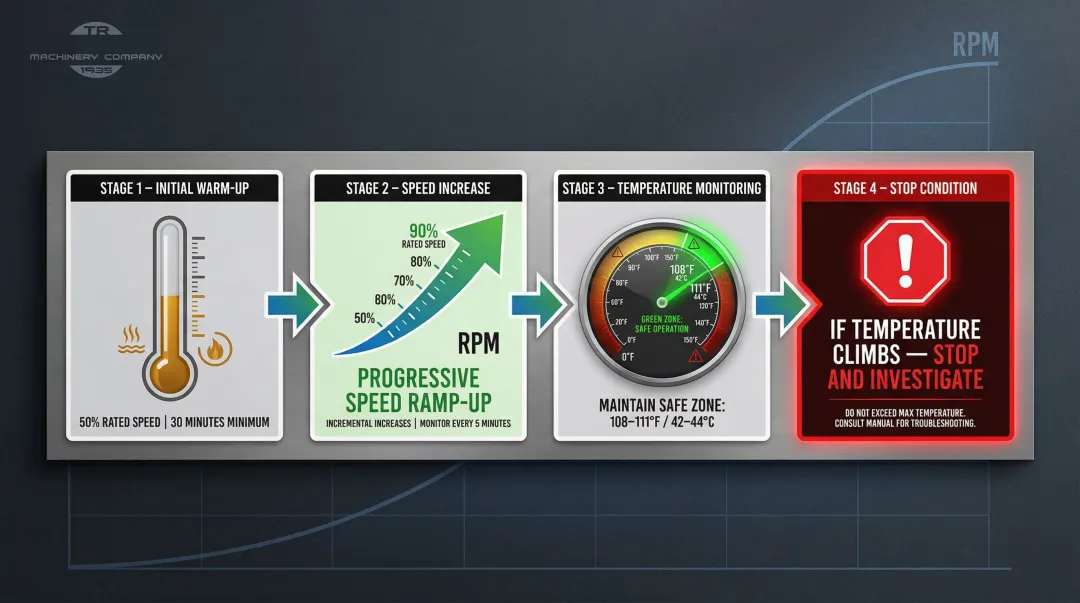

- Mount the spindle and run it at low speed (approximately 50% of rated speed) for at least 30 minutes of initial warm-up
- Progressively increase toward rated RPM
- Monitor spindle housing temperature throughout — target range is approximately 108–111°F (42–44°C) for grease-lubricated surface grinder spindles
- If temperature climbs unexpectedly, stop and investigate before continuing
After break-in, perform these precision verification checks:
- Mount a dial indicator and measure spindle runout at the wheel hub face and at a defined distance from the nose
- Target tolerance: ≤0.005mm radial runout for precision surface grinder spindles
- Check for any vibration, abnormal noise, or uneven resistance during rotation
Once the spindle passes all checks, it's ready for production use. Before returning it to service, record the following for your maintenance log:
- Rebuild date and bearing part numbers
- Spacer dimensions used
- Grease type and quantity applied
- Measured runout values
This baseline serves as the reference point for future maintenance intervals and helps flag when the next replacement is approaching.
Common Bearing Replacement Problems and How to Fix Them

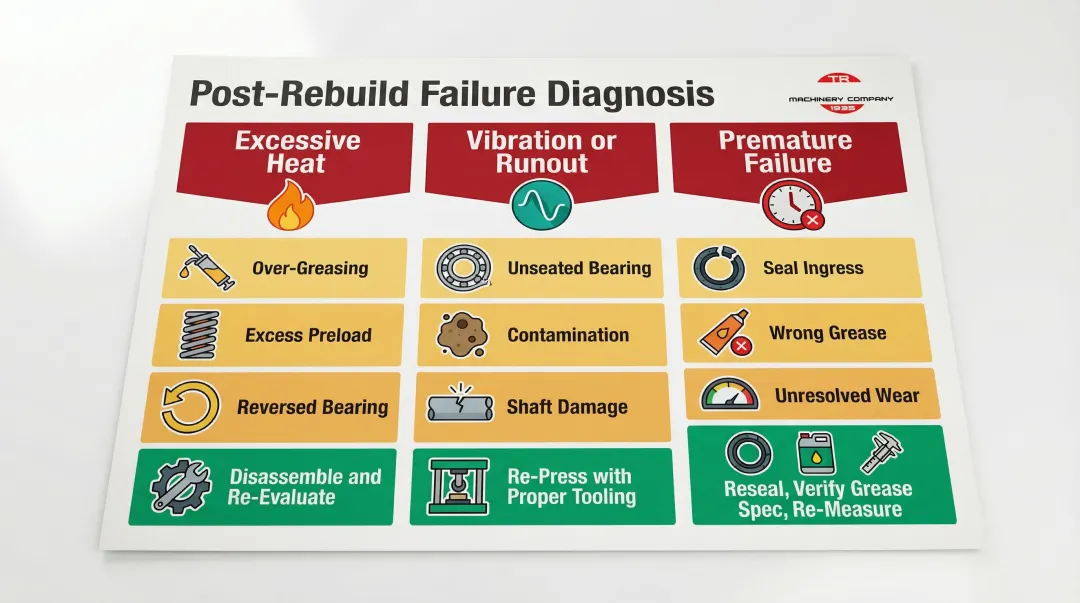

Most post-rebuild failures trace back to three predictable errors — all preventable:
- Excessive heat during break-in
- Vibration or runout immediately after reassembly
- Premature bearing failure weeks after the rebuild
Excessive Heat During Break-In
Problem: Spindle housing runs hotter than expected during break-in testing, with temperature continuing to climb rather than stabilizing.
Likely causes:
- Over-greasing (excess grease generates churning heat)
- Incorrectly preloaded bearings (too much preload forces the rolling elements to work against one another)
- Reversed bearing (wrong orientation causes abnormal internal loading)
Fix: Stop the spindle, allow it to cool, then disassemble and re-evaluate grease quantity, spacer fit, and bearing orientation before reassembling.
Vibration or Runout Immediately After Reassembly
Dial indicator readings show runout exceeding spec, or audible vibration is present when the spindle runs. Common causes:
- Bearing not fully seated in the housing or on the shaft (uneven press-fitting)
- Contamination between the bearing and its mating surface
- Damaged shaft journal that prevents concentric seating
Disassemble and inspect all mating surfaces. Re-press the bearing using proper tooling for full, even seating, then measure shaft journal diameter and housing bore to confirm both are within specification.
Premature Bearing Failure Weeks After Rebuild
Noise, heat, or accuracy loss returning within weeks of a rebuild usually points to one of three root causes:
- Coolant or contamination ingressing through a worn or improperly installed seal
- Incorrect grease specification (general-purpose grease instead of high-speed spindle grease)
- Underlying shaft or housing wear that was not corrected during the rebuild
To address it:
- Inspect seals and re-seal threads with thread locker
- Confirm the correct grease type is being used
- Measure shaft and housing dimensions to identify any out-of-spec surfaces before repeating the rebuild
Pro Tips for a Successful Surface Grinder Spindle Bearing Job
Replace bearings as a matched set, not individually. Angular contact spindle bearings are typically supplied in matched pairs with pre-matched spacers. Mixing new and old bearings, or using mismatched pairs, defeats the preload design and introduces uneven loading from the first revolution.
Handling and storage matter more than most shops expect. Keep these rules in place throughout the rebuild:
- Store bearings on clean, non-metallic mats or trays — metal-to-metal contact risks microscopic surface damage
- Keep bearing packaging intact until the moment of installation
- Handle with lint-free gloves; even fingerprint oils attract contamination
If a shaft journal shows fretting marks, scoring, or wear beyond tolerance, repair or replace the shaft before installing new bearings. A precision bearing installed on a worn shaft is a short-term fix— the underlying geometry error will repeat the failure cycle.
Know when in-shop replacement isn't enough. If the housing bore is out-of-round, the shaft journal is significantly undersize, or the spindle taper shows excessive runout that a light kiss grind can't correct, send the spindle to a rebuild specialist with OD/ID grinding capability. In-shop bearing replacement won't solve a geometry problem.
Frequently Asked Questions
Can a spindle be repaired?
Yes, most surface grinder spindles can be repaired—typically by replacing bearings, seals, spacers, and coupling components. However, cases with severe shaft wear, housing bore damage, or taper runout issues may require specialized machining (shaft regrinding, bore replating) or full spindle replacement if damage is too extensive.
How long should a CNC spindle last?
Spindle lifespan depends on operating speed, load, lubrication practices, and environmental conditions. With proper maintenance and prompt attention to early warning signs, bearing life can range from several thousand to tens of thousands of operating hours.
How do I know if my surface grinder spindle bearings need replacing?
Primary indicators include unusual noise (grinding, squealing), elevated spindle housing temperature beyond normal operating range, increased vibration detectable by feel or instrument, and degraded part surface finish or loss of tolerance in finished workpieces. Any of these symptoms warrants immediate inspection.
What type of bearings are used in surface grinder spindles?
Surface grinder spindles use angular contact ball bearings in matched pairs, which handle combined radial and axial loads. Contact angle (15°, 25°, or 40°) determines axial load capacity and must match the original machine specification.
How long does a surface grinder spindle bearing replacement take?
Expect a half-day to a full day of skilled labor for disassembly, bearing installation, reassembly, and break-in testing. Shaft or housing repairs discovered during inspection can extend that timeline further.
What is bearing preload and why does it matter for surface grinders?
Preload is a controlled axial force applied to paired angular contact bearings through precisely sized spacers, eliminating internal clearance. Correct preload keeps the spindle running true under load; too little causes vibration and chatter, too much causes overheating and shortened bearing life.
