Introduction
Cylindrical grinding and horizontal boring solve two different shop-floor problems. One brings a round surface to its final diameter, roundness, and finish. The other opens up, aligns, and machines large bores in parts too big or heavy to spin on a chuck.
Many shops try to cover both jobs with a single machine, then wonder why certain parts keep bouncing to an outside vendor for the one step their equipment can't handle. That gap shows up as added lead time, re-fixturing risk, and tolerances that drift between two disconnected setups.
Norton's grinding guidance targets 32 to 4 microinches Ra or better for precision CNC production grinding. That finish is what abrasive machining is built to reach, and a boring bar alone usually can't match it on a hardened or tight-tolerance bore.
This article breaks down what each process does best, where the two overlap, and when a shop's part mix justifies owning both.
Key Takeaways
- Cylindrical grinding finishes OD/ID surfaces, tapers, and shoulders to final size and roundness.
- Horizontal boring handles large bores, faces, and holes on heavy or oversized parts in one setup.
- Many components need boring first for size and location, then grinding for the final surface.
- Equipment choice depends on part size, tolerance, material condition, and production volume.
- Compare current outsourcing costs and floor space before investing in either capability.
Cylindrical Grinding vs. Horizontal Boring: Quick Comparison
The two processes rarely compete for the same job. They usually show up at different stages of the same part's production.
| Factor | Cylindrical Grinding | Horizontal Boring |
|---|---|---|
| Workpiece | Shafts, sleeves, pins, bearing surfaces, sized to fit the grinder's swing and center distance | Housings, frames, gearbox cases, weldments, often too large or awkward to rotate |
| Primary operation | Abrasive wheel removes small stock amounts to correct diameter, roundness, taper, and finish | Rotating boring bar enlarges, corrects, or creates a bore; can also mill, drill, and tap |
| Dimensional focus | Final size, roundness, concentricity, cylindricity, surface texture | Bore location, feature-to-feature alignment, bulk material removal |
| Production role | Finishing step, often after turning or heat treatment | Primary or intermediate step that establishes geometry |
Workpiece and scale matter first. A cylindrical grinder's maximum diameter and length are fixed by the machine itself. A Clausing CCG1280CNC, for example, handles a 12.5-inch swing and 78.7 inches between centers. Horizontal boring mills work at a different scale entirely: FERMAT's WFT 15 accommodates workpieces up to 20 tons, optionally 40 tons, with a 150 mm (5.9 in) spindle.
Investment considerations diverge too. Each process carries different ongoing demands:
- Grinding: Wheel selection, dressing routines, coolant delivery, and operator skill
- Boring mills: Floor space, rigging capacity, fixturing, and CNC programming support
Neither is a small commitment. Evaluate both carefully before either machine hits the shop floor.
What Is Cylindrical Grinding?
Cylindrical grinding is an abrasive process where a rotating wheel finishes the outside or inside surface of a cylindrical workpiece. It comes in several forms:
- OD grinding — finishes external diameters, shoulders, and tapers
- ID grinding — finishes internal bores, often on bearing rings and bushings
- Plunge grinding — wheel stays fixed in position, typically to transfer a profile
- Traverse grinding — wheel moves back and forth along the workpiece axis
- Universal grinding — a swiveling wheelhead handles both OD and ID work in a single clamping, as seen on machines like STUDER's S31
Workholding Drives Accuracy
How the part is held changes the outcome. Between-centers setups support long shafts and reduce flex. Chucking works for shorter parts needing one clamped end.
FERMAT's BUC E 63/4000, for instance, supports between-centers work, chuck flying mode, a live spindle, or a magnetic board depending on the part. Stable support and proper alignment drive roundness, concentricity, and repeatability more than the wheel alone.
Why Grinding Instead of Turning?
Grinding earns its place when a part needs:
- A tighter final diameter than turning can hold consistently
- A finer surface finish than a single-point tool produces
- Correction after heat treatment, when material has hardened or distorted
- Finishing on materials too hard to cut economically with a turning tool

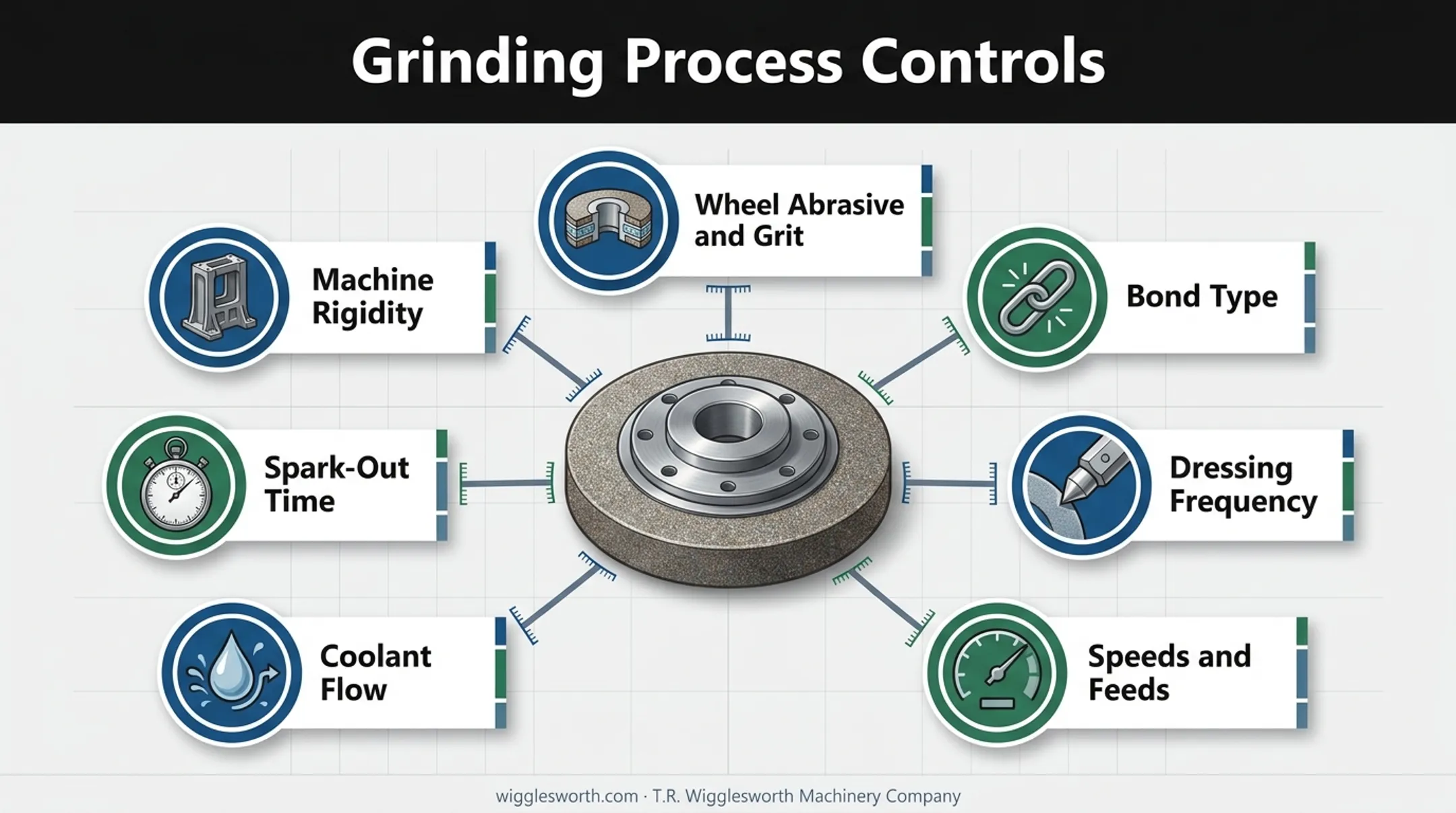

Hitting those targets still depends on process control, not only on choosing grinding over turning. Wheel abrasive and grit, bond type, dressing frequency, speeds and feeds, coolant flow, spark-out time, and machine rigidity all shape the finish—change any one and the result moves with it.
Common applications include aerospace shafts and bearing races, medical device components, hydraulic pins, and precision tooling. These are jobs where a round surface has to meet a tight, verified spec after other machining is done.
What Is Horizontal Boring?
A horizontal boring mill uses a horizontal spindle to enlarge or finish bores while also handling milling, drilling, tapping, and facing on the same setup. The orientation matters: the workpiece stays supported on a table or fixture while the spindle and quill reach into features that would be difficult to access on a lathe or grinder.
Capabilities That Set Boring Mills Apart
Depending on configuration, a horizontal boring mill can include:
- Boring-bar reach extended through quill (W-axis) travel
- Table movement across X, Y, and Z axes for multi-feature access
- Rotary tables (B-axis) that let the part be indexed without re-fixturing
- Facing heads for machining flat surfaces perpendicular to the bore
- CNC control for repeatable, programmed multi-operation cycles
FEMCO's BMC series illustrates the range: table load capacities from 33,000 to 40,000 pounds, X-axis travel from 55 to over 157 inches, and a 60-tool automatic changer on some configurations. FERMAT's larger floor-type mills, such as the WRF Heavy, use 130 to 160 mm spindles. They handle workpieces up to 100 metric tons on rated floor plates.
Fewer Setups, Better Alignment
Machining a bore, its mounting face, and related holes in one fixturing pass reduces handling of heavy parts and improves feature-to-feature alignment.
Common applications include:
- Large pump bodies and gearbox cases
- Engine blocks and construction equipment components
- Fabricated frames that are impractical to rotate on a grinder
When Does a Shop Need Both Cylindrical Grinding and Horizontal Boring?

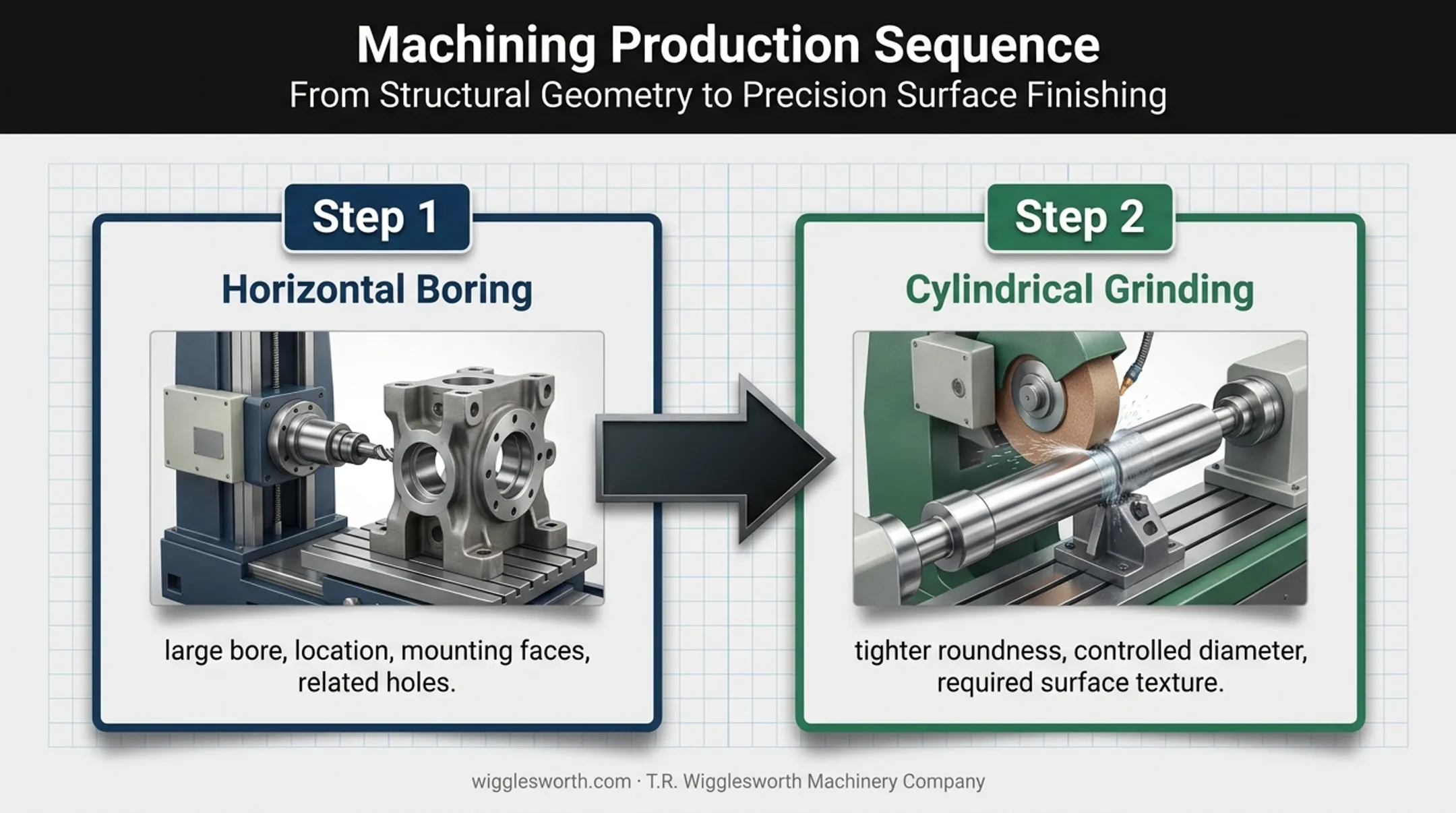

The complementary workflow looks like this: a horizontal boring mill establishes the large bore, its location, mounting faces, and related holes. Cylindrical or internal grinding then delivers the final precision: tighter roundness, controlled diameter, and the surface texture the print actually demands.
Decision Factors, in Order
- Part size and weight: Can it be safely rotated and supported on a grinder, or must it stay stationary on a boring table?
- Geometry: Does the job include large housings, intersecting bores, bolt patterns, and faces beyond a single cylindrical surface?
- Accuracy and finish requirements: Separate positional accuracy and bulk material removal from final diameter, roundness, and surface finish.
- Material and condition: Castings, weldments, and heat-treated parts all remove stock differently and distort differently.
- Volume and repeatability: Dedicated grinding cycles suit high-repeat parts; flexible boring setups suit varied, lower-volume work.
Use that order to pick the process mix:
- Horizontal boring when the part is large, heavy, non-axisymmetric, or feature-rich
- Cylindrical grinding when the core need is precision OD or ID finishing
- Both when one process locates or roughs the feature and the other delivers the functional surface
Not every shop needs both. Low volume, simple geometry, achievable tolerances on existing equipment, or a dependable outside grinding or boring vendor can make a second machine hard to justify.
A Quick Self-Check
Before adding either capability, tally up:
- Outsourced grinding or boring spend over the past year
- Jobs declined or quoted high because of a missing process
- Repeat rework tied to re-fixturing between vendors
- Available floor space, rigging access, and power service
- Operator and programming expertise on staff
- Inspection equipment already on hand
Once that picture is clear, a full-service provider like T.R. Wigglesworth Machinery Company can help compare new and used equipment, tooling, accessories, delivery, and installation against that workflow. No single machine fits every shop's part mix.

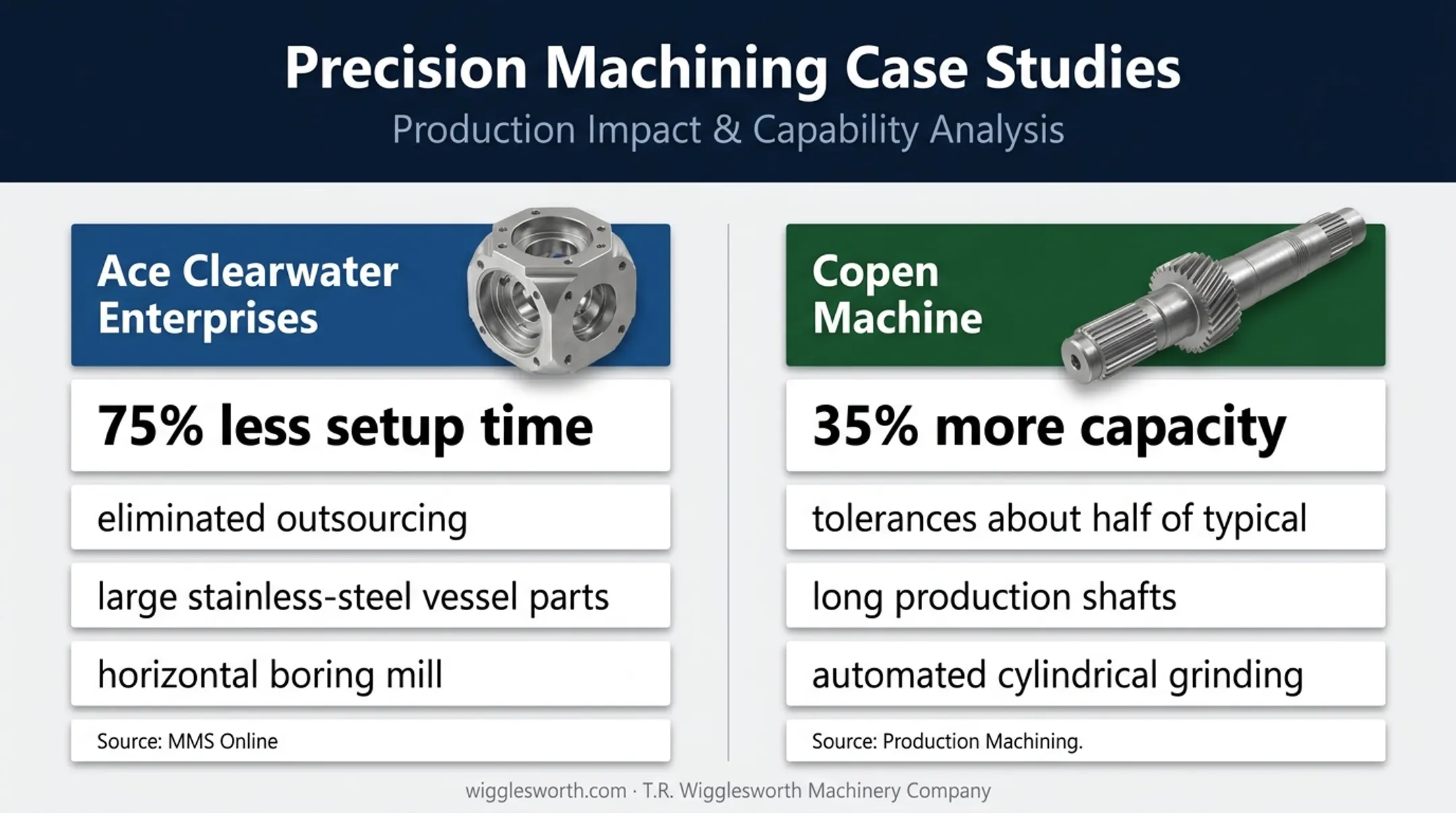

Real-World Shop Scenarios and Equipment-Selection Lessons
Large-Part Boring: Setup Time Cut by 75%
Ace Clearwater Enterprises, an aerospace supplier, needed to machine stainless-steel storage-vessel parts that existing equipment couldn't accommodate. After bringing in a horizontal boring mill with quill travel and a rotary table, the shop reported 75% less setup time and eliminated outsourcing that had previously been required for those parts. That case shows what horizontal boring solves well: access to large geometry and fewer repositioning steps. It doesn't address a final ground interface. For parts with a bearing bore or seal surface inside that same housing, grinding is still the step that delivers final roundness and finish.
Ground Shafts: 35% More Capacity
Copen Machine faced a different problem. Outside suppliers couldn't keep up with rising volume on long production shafts, some exceeding 12 inches, where flexing and tight tolerances made OD grinding between centers essential. After automating cylindrical grinding in-house, the shop added roughly 35% more capacity. Grinding tolerances ran about half of a typical ±0.0002-inch machining tolerance. Here, horizontal boring wasn't part of the equation at all. The part was already axisymmetric and small enough for a grinding cell. The lesson: match the process to the geometry and volume, not the other way around. Before choosing equipment, map each recurring part family by:
- Size, weight, and bore diameter
- Tolerance and finish requirements
- Material condition and setup count
- Annual volume That map, not a general rule, should drive the decision. Once that documentation is in hand, reach out to T.R. Wigglesworth Machinery Company to talk through machine options, tooling, delivery, installation, or training.
Conclusion
Cylindrical grinding and horizontal boring fill different roles in the same workflow. Horizontal boring provides large-scale access, bulk material removal, and multi-feature machining. Cylindrical grinding delivers controlled final geometry and finish on round surfaces.
Choose based on part families and process sequence first. Then evaluate whether owning both capabilities in-house would cut outsourcing costs, handling risk, rework, and lead time compared to your current setup.
Before buying new or used equipment, have a machine tool provider review your part drawings, capacity requirements, floor-space constraints, and support needs. That conversation, more than any spec sheet, determines whether one machine or two is the right call.
Frequently Asked Questions
How does cylindrical grinding differ from boring?
Cylindrical grinding uses an abrasive wheel to finish the outside or inside of a round surface for final size and finish. Boring uses a cutting tool to create, enlarge, or correct a bore, and horizontal boring mills often add milling, drilling, and tapping in the same setup.
What is the difference between honing and boring a cylinder?
Boring establishes or enlarges a cylinder's size and geometry with a cutting tool. Honing follows boring, using abrasive stones to refine bore texture and the crosshatch pattern.
What can CNC horizontal boring mills and cylindrical grinders do?
A CNC horizontal boring mill can automate bore, mill, drill, and tap cycles in one setup. A CNC cylindrical grinder automates wheel feed, dressing, and finishing passes for final size and surface finish.
When does a shop need both cylindrical grinding and horizontal boring?
Use both when a large or complex part needs horizontal boring for major bores and related features. Add cylindrical or internal grinding when a bearing, seal, or shaft interface needs tighter final diameter, roundness, or finish.
Can a horizontal boring mill finish a bore to grinding tolerances?
It depends on the machine, tooling, material, and setup. Some fine-boring operations reach tight hole tolerances, but many print requirements for roundness, size control, or surface finish still call for a dedicated grinding operation.
What factors should a shop consider when choosing between new and used machine tools?
Consider application fit, machine capacity, condition, control and tooling compatibility, and serviceability. Also weigh inspection needs, delivery, installation, training, total cost, and how much the machine will actually be used.
