Introduction
Every minute a spindle sits idle costs money. Labor rates keep climbing, customers expect faster turnaround, and shops are under constant pressure to squeeze more parts out of the machines they already own.
Every minute a spindle sits idle costs money. Labor rates keep climbing, customers expect faster turnaround, and shops are under constant pressure to squeeze more parts out of the machines they already own.
That pressure is why twin-pallet CNC machines keep coming up in capital equipment conversations.
A second pallet lets an operator load or unload one workpiece while the machine cuts the other. That sounds like an easy path to double output. It isn't automatic.
Realized gains depend on your cycle time, workholding, staffing model, scheduling discipline, and part mix. This article breaks down the actual operational benefits, the hidden costs, where twin-pallet systems fit best, and a practical framework for deciding whether the investment pays off in your shop.
Key Takeaways
- Twin-pallet machines recover non-cut time by loading and prepping outside the cut cycle—not by doubling capacity.
- Biggest gains come from cutting idle spindle time during load and prep, not from pallet count alone.
- ROI hinges on utilization, labor availability, repeat volume, and fixture readiness.
- Best fit: repeatable demand with prepared work ready so the machine stays fed.
What Is a Twin-Pallet CNC Machine? (Brief Context)
A twin-pallet CNC machine uses an automatic pallet changer to alternate between two workholding platforms. While one pallet sits inside the machining area getting cut, the second pallet waits outside it, ready to be loaded, cleaned, or inspected.
That separation is the entire point. It reduces how often the machining process has to stop just so a human can swap parts.
A pallet changer and an automatic tool changer solve different problems:
- Pallet changer: Moves workpieces and fixtures in and out of the work zone
- Automatic tool changer: Swaps cutting tools during the machining cycle
A twin-pallet system improves workflow through a CNC cell. FERMAT's WFT 11 W, for example, offers a twin-pallet configuration with full B-axis high-precision pallets built for continuous production on longer weldments and complex frames. The setup keeps parts moving; higher output still depends on cycle time, setup discipline, and job mix.
Key Advantages of Twin-Pallet CNC Machines
A second pallet only pays off when it adds productive time and usable capacity to your specific operation.
Reduced Spindle Idle Time
Offline loading separates operator activity from cutting time. The spindle keeps running while the next job gets staged.

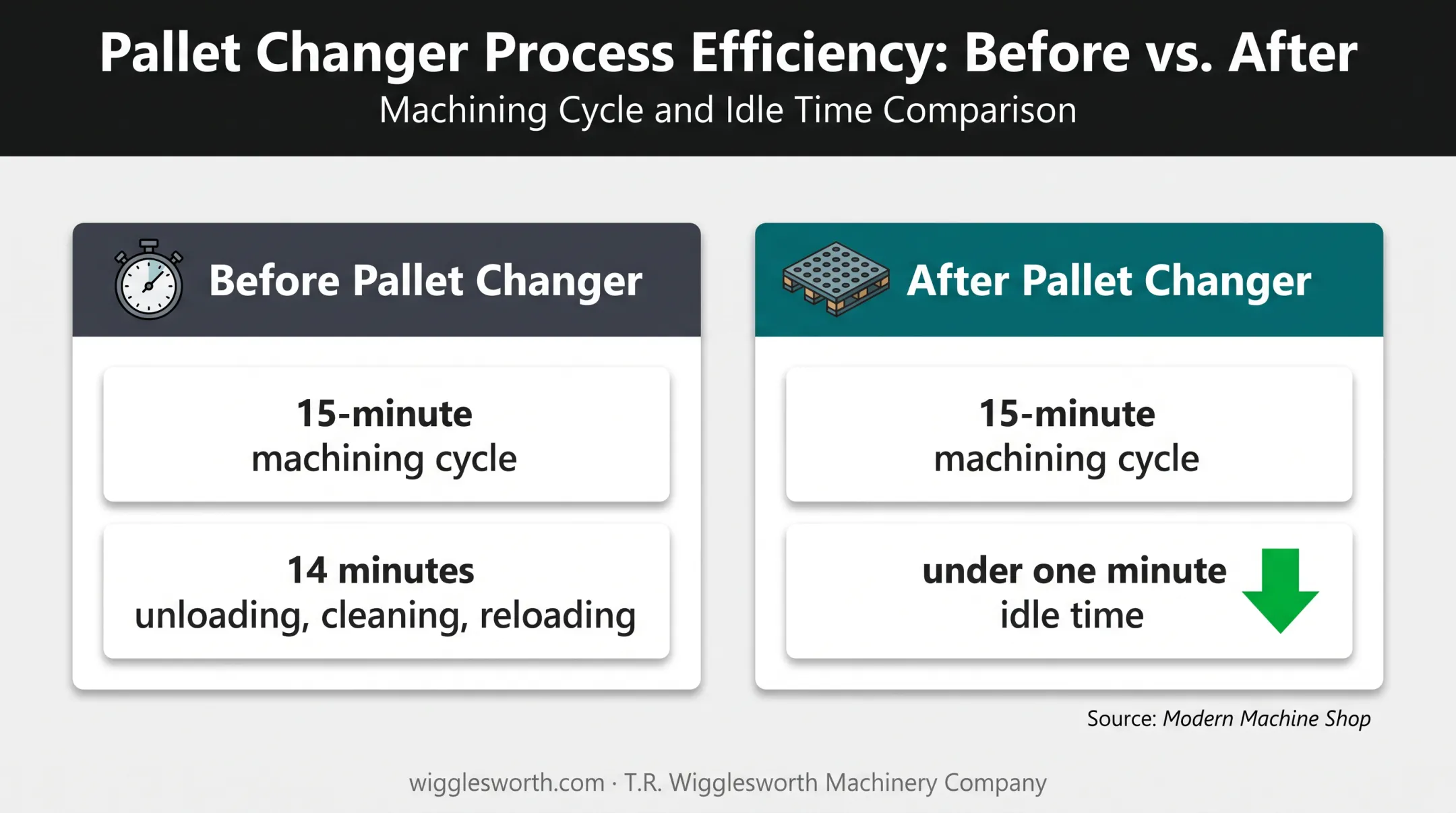

At one shop documented by Modern Machine Shop, a 15-minute machining cycle previously required another 14 minutes for unloading, cleaning, and reloading. After adding a pallet changer, that idle portion dropped to under one minute.
That's a single shop's result on a high-production job, not a universal benchmark. It shows what's achievable when handling time is significant relative to cutting time.
Watch these KPIs:
- Spindle utilization
- Cycle interruptions
- Operator waiting time
- Available machine hours
The benefit scales with how much of your cycle currently goes to loading, probing, and fixture changes. If that's 5% of cycle time, don't expect dramatic results.
More Output from the Same Machine Footprint
A second pallet can increase completed parts from an existing machine, without buying a whole new one, as long as the machine stays supplied with work.
Multi-part vises, tombstones, and cubes matter here. Denser fixtures mean more parts per pallet and fewer pallet exchanges overall. A rough capacity check looks like this:
Parts per pallet × cycles per shift × operating days = theoretical output
Label your assumptions clearly and test them against actual shop data, not catalog specs. This is the calculation that connects directly to delivery reliability and your ability to take on new work without adding machines.
Better Labor Utilization and Unattended Potential
While the machine cuts one pallet, an operator can prepare the next: loading raw material, checking tools, staging inspection. That reduces time spent standing around waiting for a machine to open up.
Some shops extend this into limited unattended running. Cutting Tool Engineering documents an example where a loaded second pallet supported 3 to 4 hours of unattended operation. That's not a blanket guarantee. Unattended running depends on:
- Stable, predictable tool life
- Reliable chip and coolant management
- Working alarm and safety systems
- A recovery plan when something goes wrong
Track operator touch time per part, machines supported per operator, and how many shifts get interrupted by loading tasks. The gain shrinks fast if one person must babysit the machine anyway, or if downstream inspection can't keep pace.
Greater Flexibility for Repeat Jobs and Part Families
Two pallets support first-operation/second-operation workflows and quick swaps between compatible jobs. Standardized fixtures, repeatable locating, and documented setup instructions help preserve those time savings across shifts and operators.
Value varies by production type:
- High-volume repeat work: strongest fit, fastest payback
- Medium-volume part families: good fit with standardized fixturing
- One-off variable work: weaker fit unless setups share common fixture geometry
Flexibility isn't free. Every additional fixture or locating configuration adds cost and preparation time.
Improved Production Planning and Capacity Visibility
A pallet queue makes upcoming work visible, so the next job gets prepared before the machine finishes the current one.
Track scheduled versus actual pallet changes, queue starvation, blocked pallets, and waiting time. These numbers tell you more about real payback than the advertised pallet-change speed ever will.
What Happens When Single-Pallet Bottlenecks Are Ignored

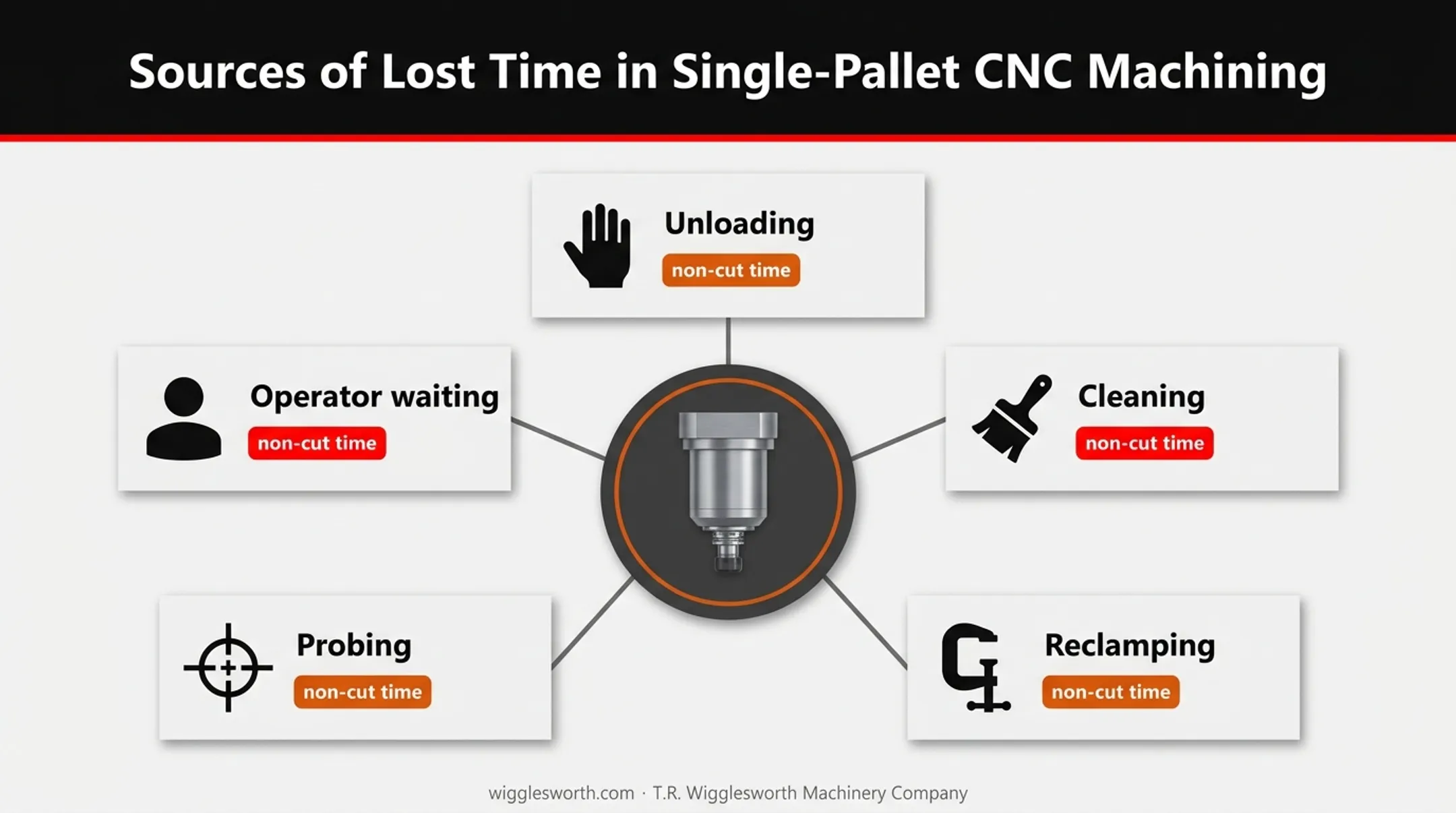

A single-pallet process can lose serious time to unloading, cleaning, reclamping, probing, and waiting for an operator, even when the programmed cutting cycle itself is efficient.
Left unaddressed, that shows up as:
- Lower spindle utilization
- Missed delivery dates
- Excessive overtime
- Underused capital equipment
- Rushed setups that create scrap
Here's the reality check: a twin-pallet machine won't fix bottlenecks caused by bad programming, unstable tooling, unreliable material supply, or weak scheduling. If those are your real problems, a second pallet just moves the bottleneck somewhere else.
Before assuming a pallet changer is the answer, confirm the delay is actually a pallet-change bottleneck and not a process engineering or workholding problem in disguise.
How to Determine Whether the Productivity Gain Is Worth It
Measure the Current Process First
Build a baseline before comparing machines. Capture cycle time, setup time, loading and unloading time, probing, cleaning, inspection, spindle-on time, downtime, scrap, and parts completed per shift.
Use actual shop-floor observations or machine data, not catalog estimates. Separate cutting time from every other time category. That's what reveals the recoverable portion of your process.
Compare Recovered Capacity with Total Ownership Cost
A practical formula:
(Annual recovered machine hours × machine-hour value) + validated labor savings + delivery value − added operating costs = net gain
Total ownership cost includes more than the machine price:
- Financing and installation
- Site preparation or foundations
- Workholding and tooling
- Probing and automation interfaces
- Utilities, maintenance, and training
- Downtime during commissioning
Get configuration-specific quotes for the machine class you're considering. Test payback under conservative, expected, and high-demand scenarios, not just the best-case number.
Check Whether Demand Can Use the Extra Capacity
Extra theoretical capacity means little without orders to fill it. Review demand consistency, backlog, batch sizes, and how much of your work suits standardized fixtures.
Warning signs the investment is premature:
- Irregular one-off work dominates the schedule
- Frequent engineering changes disrupt setups
- Current machine loading is already low
- Downstream finishing or inspection can't absorb more parts
Assess Workholding and Process Readiness
Repeatable locating, rigid clamping, tool access, and chip evacuation determine whether the second pallet actually delivers value. Evaluate fixture cost, loading ergonomics, pallet weight limits, and access for probing.
Workholding changes alone can move the needle. At Park Precision, switching to zero-point clamping on an existing two-pallet machine cut setup time from 13 hours to 8 hours and raised output from 3.7 to 4.3 housings per hour, according to Cutting Tool Engineering.
That gain came from the fixturing, not from adding a pallet changer. Fixture readiness deserves its own line item in your evaluation.
Pallet weight limits also decide which platform fits the work. The FERMAT WFT 11 W Twin Pallets, available through T.R. Wigglesworth Machinery Company, handles workpieces up to 10 metric tons standard, with longer X-axis versions supporting up to 20 metric tons for heavier weldments. Factor delivery, installation, and training into that same workholding plan so capacity on paper matches what the floor can run.
Decide with a Conservative Payback and Risk Review
Calculate payback against your current baseline. Exclude speculative revenue you haven't validated.
Factor in operational risks:
- Pallet changer maintenance
- Sensor or clamping faults
- Fixture damage
- Recovery time after an interrupted cycle
- Training requirements
- Dependence on one specialized machine
The final call should weigh capacity resilience and customer service alongside the shortest calculated payback period, not instead of it.
Get the Most from the Investment Once You Buy

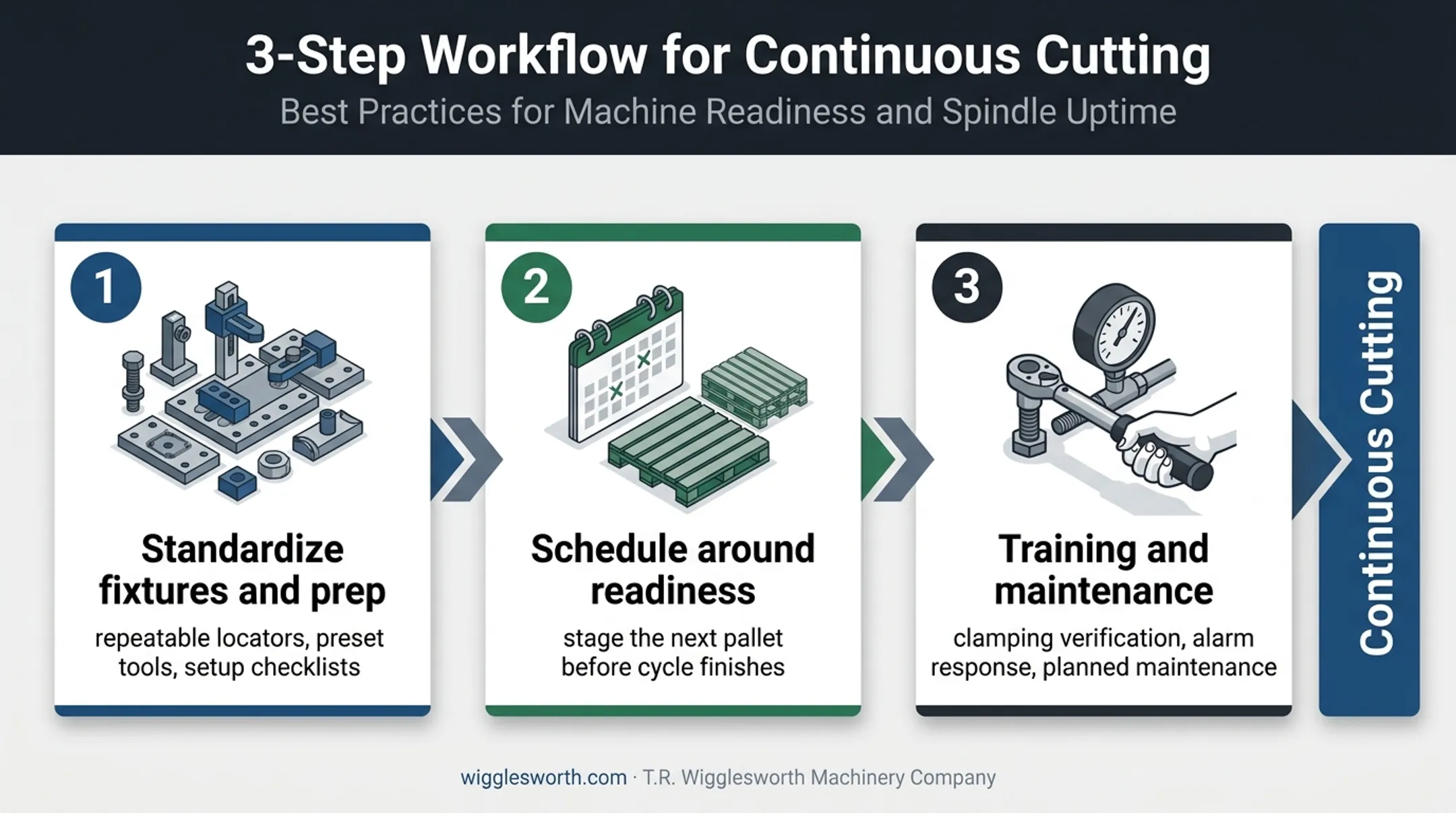

A twin-pallet machine performs best when the surrounding process is built for continuous cutting:
- Standardize fixtures and pallet prep: repeatable locators, preset tools, and setup checklists reduce re-probing and operator dependency across shifts.
- Schedule around pallet readiness, not machine availability: stage the next pallet before the current cycle finishes; track queue starvation as your early warning sign.
- Build in training and maintenance: cover clamping verification, alarm response, and planned maintenance on locating surfaces, clamps, and sensors before you need them.
Delivery, installation, and training support should factor into supplier selection upfront, not get treated as an afterthought once the machine is on the floor.
Conclusion
A twin-pallet CNC machine earns its keep when it recovers substantial non-cut time, serves repeatable demand, and is backed by the right workholding, staffing, and scheduling.
The productivity gain is not automatic. It comes from converting idle or manual time into machining time, and only when fixtures, staffing, and scheduling support that conversion.
Before you commit capital:
- Baseline your current operation
- Model conservative payback scenarios
- Confirm fixture and facility requirements
If you need application-specific advice on machine selection or workholding, T.R. Wigglesworth Machinery Company can help you pressure-test the decision before you sign a purchase order.
Frequently Asked Questions
What is a pallet in a CNC machine?
A pallet is the removable workholding platform that carries a fixture and workpiece into the machining area. In a twin-pallet system, one pallet is set up while the other is being machined.
How much does a CNC machine cost?
Twin-pallet CNC pricing depends on machine size, spindle, automation level, and workholding. Compare full ownership quotes—not base machine price alone—because the second pallet, fixtures, tooling, and training often drive a large share of total cost.
What is 2-axis CNC?
A 2-axis CNC machine controls movement along two coordinated directions, typically for turning or simpler operations. Axis count is separate from pallet count: a machine can be 2-axis or 5-axis regardless of how many pallets it has.
